SKU: UCF207-106D1-NTN

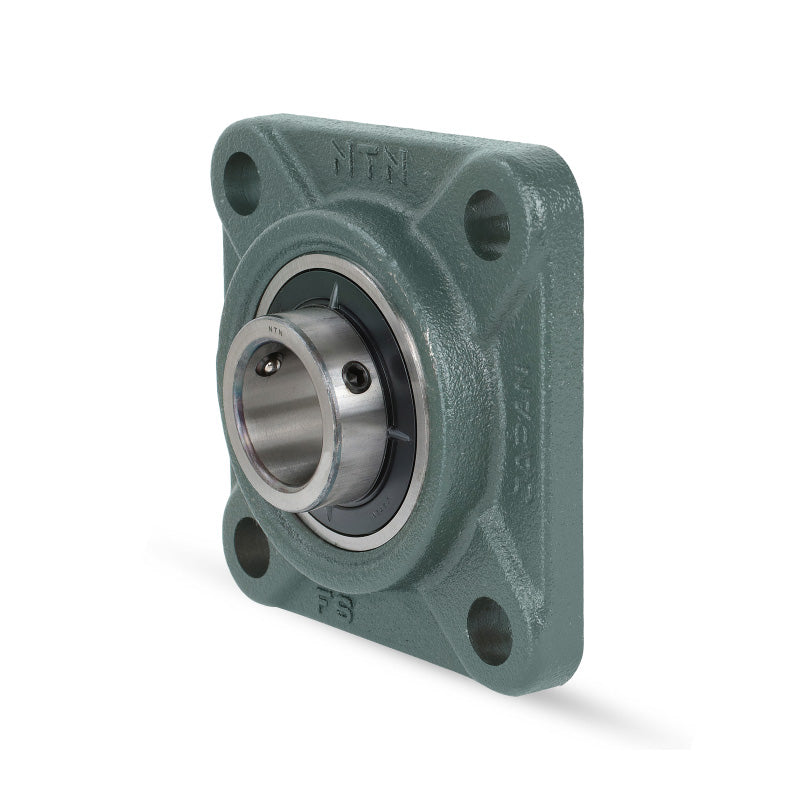

NTN UCF207-106D1 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/8 inch Bore Insert - Allow 2-3 Days
NTN UCF207-106D1 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/8 inch Bore Insert - Allow 2-3 Days
Out of stock
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- UCF
- Bolt Hole Centres:
- 3-5/8 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-3/8 inch |
| L | 4-19/32 inch |
| J | 3-5/8 inch |
| A<sub>2</sub> | 3/4 inch |
| A<sub>1</sub> | 19/32 inch |
| A | 1-11/32 inch |
| N | 35/64 inch |
| A<sub>0</sub> | 1-3/4 inch |
| B | 1.689 inch |
| S | 0.689 inch |
| Fixing bolt | 7/16 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 28.4 kN |
| Static load C<sub>0r</sub> | 15.3 kN |
| Fatigue load limit C<sub>u</sub> | 1.09 kN |
| --- | Unit information |
| Mass | 3.3 lbs |
