SNR UCF211L3 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert with Triple Lip Seal
SNR UCF211L3 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert with Triple Lip Seal
Regular price
€120,54
ex VAT
Regular price
Sale price
€120,54
ex VAT
In stock
Price Break
3+
€91,61
4+
€86,46
9+
€85,43
19+
€84,40
49+
€83,37
99+
€82,34
499+
€77,20
999+
€76,17
1999+
€75,14
2999+
€74,11
4999+
€72,05
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCF
- Bolt Hole Centres:
- 130mm
Technical
Technical

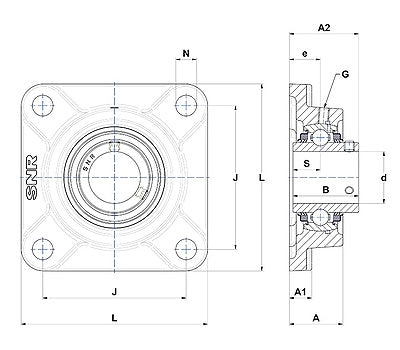

| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 43mm |
| A1 | 18mm |
| A2 | 58.4mm |
| B | 55.6mm |
| e | 25mm |
| J | 130mm |
| L | 162mm |
| N | 19mm |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.31 kg |
