SKU: UCFA205-14
UCFA205-14 Imperial Cast Iron Adjustable Flange Unit with 7/8 inch Insert
- Regular price
- €15.66 ex VAT
- Sale price
- €15,66
- Regular price
-
In stock
Quantity Price Breaks
3
€13.94
4
€13.15
9
€13.00
19
€12.84
49
€12.68
99
€12.53
499
€11.75
999
€11.59
1999
€11.43
2999
€11.28
4999
€10.96
SKU:
UCFA205-14
UCFA205-14 Imperial Cast Iron Adjustable Flange Unit with 7/8 inch Insert
- Regular price
- €15.66 ex VAT
- Sale price
- €15,66
- Regular price
-
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

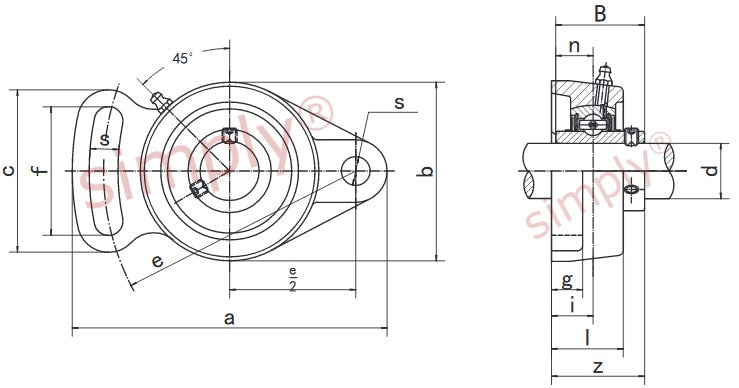

| d | = | 7/8 inch |
| a | = | 4-7/8 inch |
| e | = | 3-55/64 inch |
| i | = | 5/8 inch |
| g | = | 35/64 inch |
| l | = | 1-1/16 inch |
| s | = | 33/64 inch |
| b | = | 2-3/4 inch |
| z | = | 1-13/32 inch |
| f | = | 2-1/64 inch |
| c | = | 2-9/16 inch |
| B | = | 1.3425 inch |
| n | = | 0.563 inch |
| Bolt size | = | 3/8 inch |
| Bearing no | = | UC205-14 |
| Housing no | = | FA205 |
| Weight | = | 0.67 kg |
