SKU: UCFA207-SNR

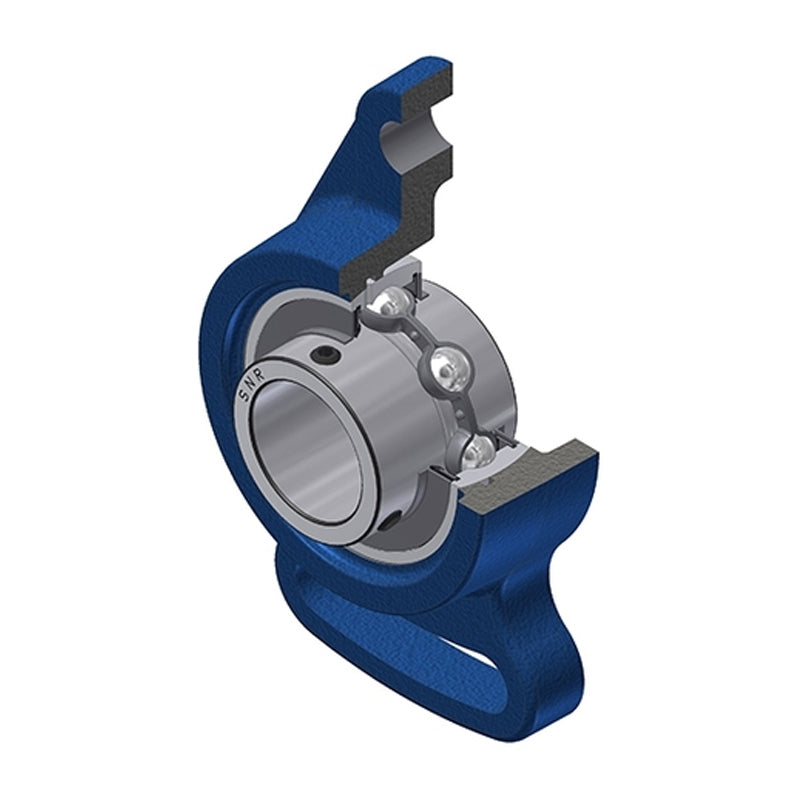

SNR UCFA207 Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days
- Regular price
- €43.73 ex VAT
- Sale price
- €43,73
- Regular price
-
Not in stock
Quantity Price Breaks
3
€38.92
4
€36.73
9
€36.30
19
€35.86
49
€35.42
99
€34.98
499
€32.80
999
€32.36
1999
€31.92
2999
€31.49
4999
€30.61
SKU:
UCFA207-SNR
SNR UCFA207 Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days
- Regular price
- €43.73 ex VAT
- Sale price
- €43,73
- Regular price
-
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 34mm |
| A1 | = | 16mm |
| A2 | = | 44.4mm |
| B | = | 42.9mm |
| e | = | 19mm |
| H | = | 161mm |
| J | = | 130mm |
| J1 | = | 66mm |
| L | = | 90mm |
| L1 | = | 82mm |
| N | = | 15mm |
| S | = | 17.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.27 kg |
