SKU: UCFA208-SNR

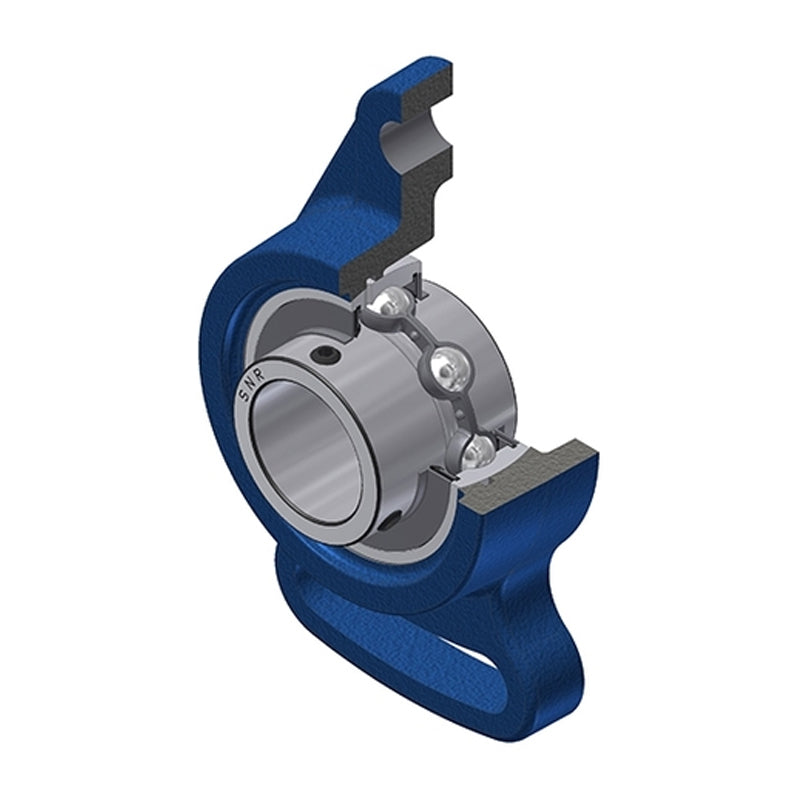

SNR UCFA208 Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Not in stock
Quantity Price Breaks
3
€40.74
4
€38.46
9
€38.00
19
€37.54
49
€37.08
99
€36.62
499
€34.34
999
€33.88
1999
€33.42
2999
€32.96
4999
€32.05
SKU:
UCFA208-SNR
SNR UCFA208 Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

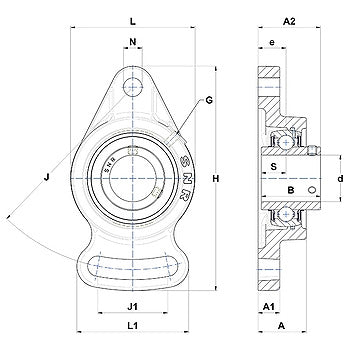

| --- | = | Dimensions |
| Shaft diameter d | = | 40mm |
| A | = | 36mm |
| A1 | = | 16mm |
| A2 | = | 51.2mm |
| B | = | 49.2mm |
| e | = | 21mm |
| H | = | 175mm |
| J | = | 144mm |
| J1 | = | 71mm |
| L | = | 100mm |
| L1 | = | 87mm |
| N | = | 15mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.64 kg |
