SKU: UCFA209-112D1-NTN

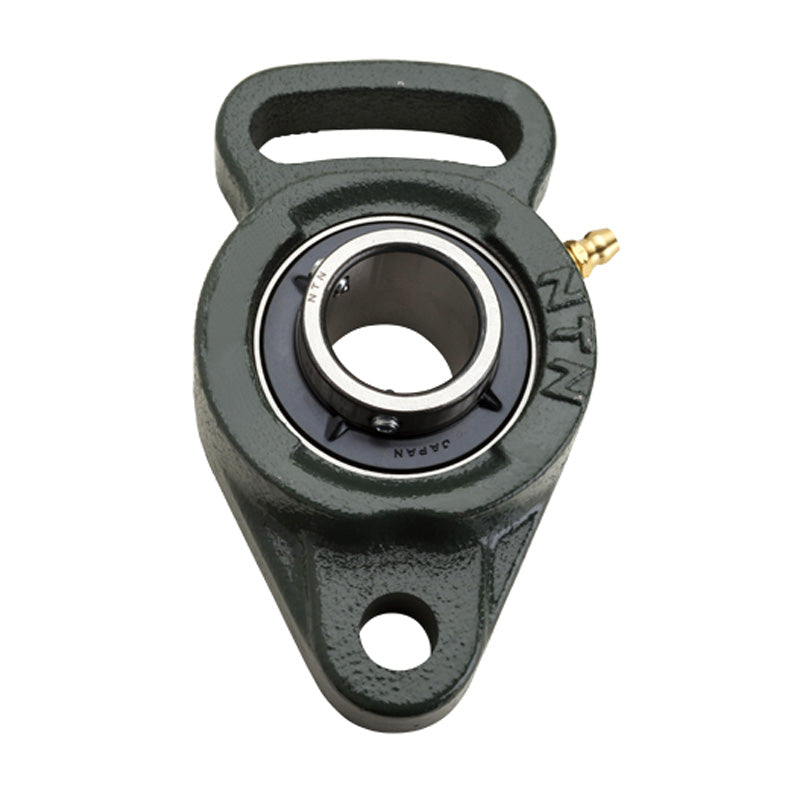

NTN UCFA209-112D1 Imperial Cast Iron Adjustable Flange Unit with 1-3/4 inch Insert - Allow 2-3 Days
NTN UCFA209-112D1 Imperial Cast Iron Adjustable Flange Unit with 1-3/4 inch Insert - Allow 2-3 Days
Out of stock
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 5-3/4 inch
Technical
Technical
| Shaft diameter | 1-3/4 inch |
|---|---|
| H | 7-1/16 inch |
| J | 5-3/4 inch |
| A<sub>2</sub> | 55/64 inch |
| A<sub>1</sub> | 23/32 inch |
| A | 1-1/2 inch |
| N | 43/64 inch |
| N<sub>1</sub> | 2-27/32 inch |
| L | 4-11/32 inch |
| L<sub>1</sub> | 3-15/32 inch |
| A<sub>0</sub> | 2-1/16 inch |
| B | 1.937 inch |
| S | 0.748 inch |
| Fixing bolt | 1/2 inch |
| Mass | 4.2 lbs |
