SKU: UCFB205-16

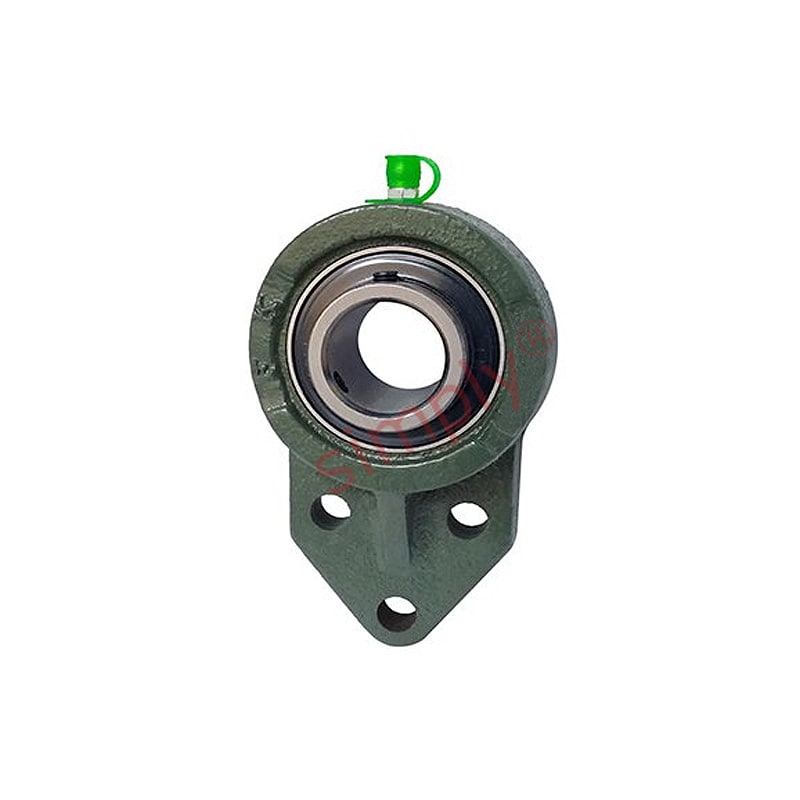

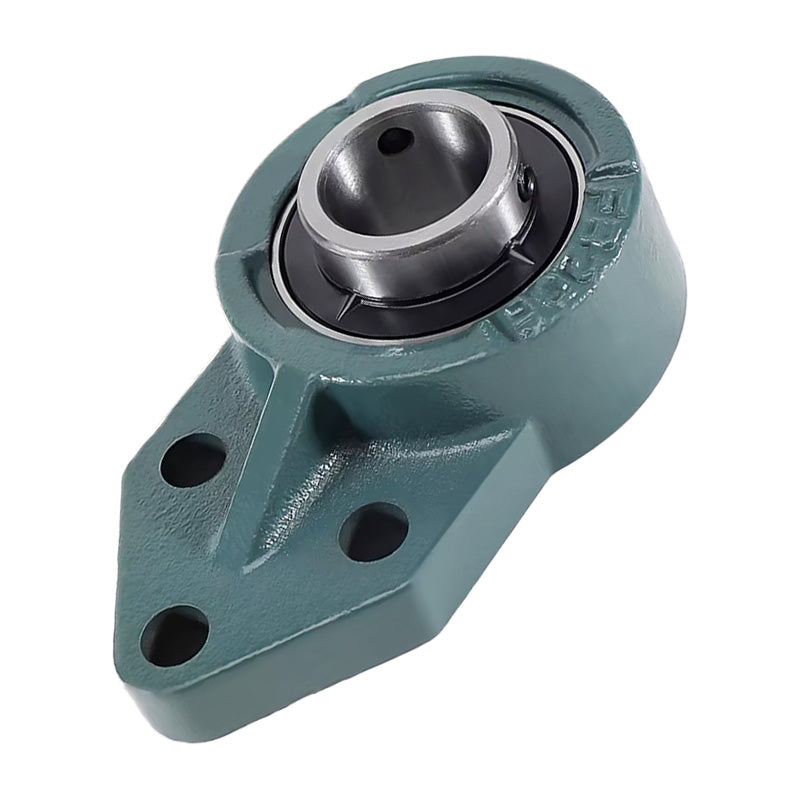

UCFB205-16 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1 inch Bore
- Regular price
- €12.78 ex VAT
- Sale price
- €12,78
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€11.37
4
€10.74
9
€10.61
19
€10.48
49
€10.35
99
€10.22
499
€9.59
999
€9.46
1999
€9.33
2999
€9.20
4999
€8.95
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1 inch |
| w | = | 4-9/16 inch |
| b | = | 2-11/16 inch |
| k | = | 2-1/16 inch |
| a | = | 2-7/32 inch |
| l | = | 1-1/16 inch |
| s | = | 25/64 inch |
| g | = | 1/2 inch |
| h | = | 1-49/64 inch |
| j | = | 1-1/16 inch |
| e | = | 1-11/32 inch |
| i | = | 5/8 inch |
| z | = | 1-13/32 inch |
| B | = | 1.3425 inch |
| n | = | 0.563 inch |
| Bolt size | = | 5/16 inch |
| Bearing no | = | UC205-16 |
| Housing no | = | FB205 |
| Weight | = | 0.634 kg |
