SKU: UCFB206-18
UCFB206-18 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-1/8 inch Bore
- Regular price
- €18.80 ex VAT
- Sale price
- €18,80
- Regular price
-
Not in stock
Quantity Price Breaks
3
€16.73
4
€15.79
9
€15.60
19
€15.42
49
€15.23
99
€15.04
499
€14.10
999
€13.91
1999
€13.72
2999
€13.54
4999
€13.16
SKU:
UCFB206-18
UCFB206-18 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-1/8 inch Bore
- Regular price
- €18.80 ex VAT
- Sale price
- €18,80
- Regular price
-
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

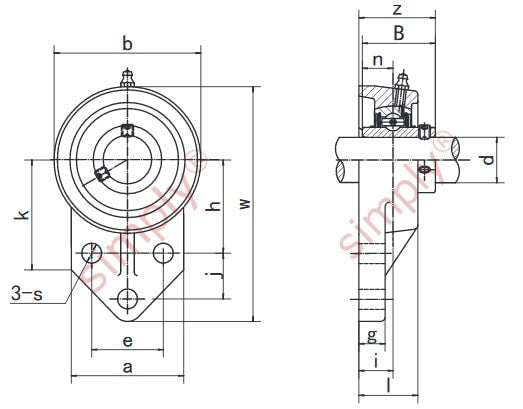

Technical
| d | = | 1-1/8 inch |
| w | = | 5-1/8 inch |
| b | = | 3-1/16 inch |
| k | = | 2-5/32 inch |
| a | = | 2-9/16 inch |
| l | = | 1-7/32 inch |
| s | = | 25/64 inch |
| g | = | 1/2 inch |
| h | = | 1-31/32 inch |
| j | = | 1-9/64 inch |
| e | = | 1-37/64 inch |
| i | = | 45/64 inch |
| z | = | 1-19/32 inch |
| B | = | 1.5 inch |
| n | = | 0.626 inch |
| Bolt size | = | 5/16 inch |
| Bearing no | = | UC206-18 |
| Housing no | = | FB206 |
| Weight | = | 0.899 kg |
