SKU: UCFC.215.TS.CHAL

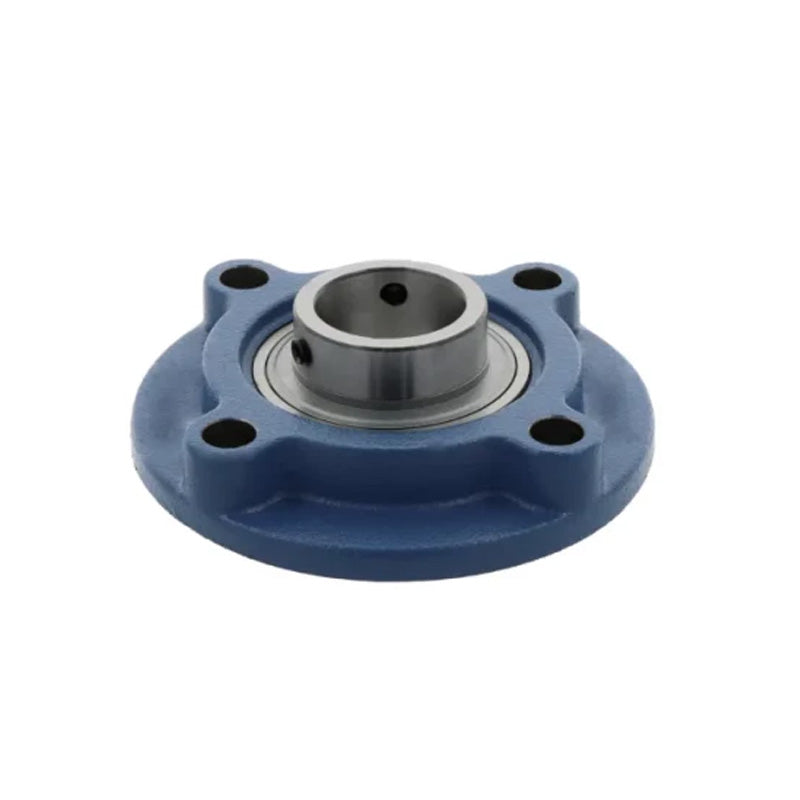

Challenge / FK UCFC215 Metric Cast Iron Four Bolt Round Flanged Housing with 75mm Bore 220mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €433.26 ex VAT
- Sale price
- €433,26
- Regular price
-
Quantity Price Breaks
Challenge / FK UCFC215 Metric Cast Iron Four Bolt Round Flanged Housing with 75mm Bore 220mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €433.26 ex VAT
- Sale price
- €433,26
- Regular price
-
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

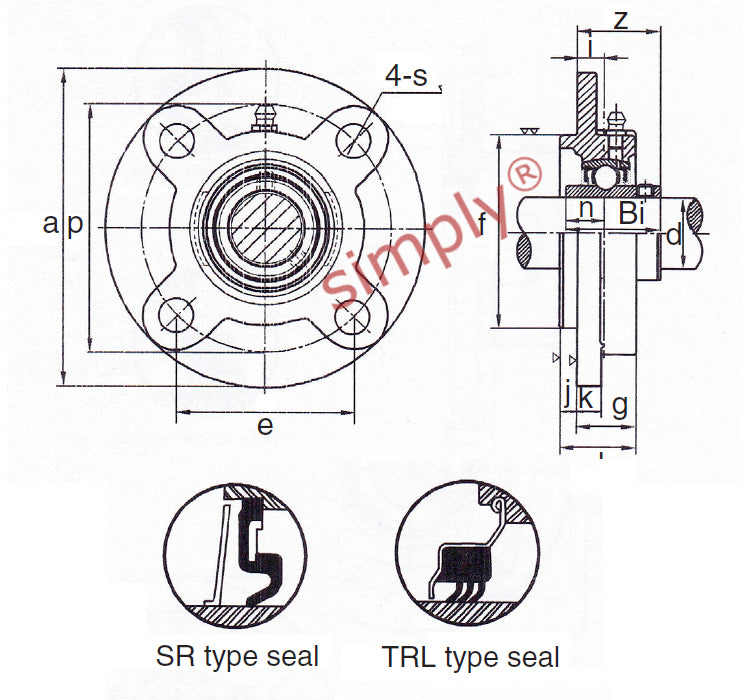

Technical
| Shaft Diameter d | = | 75mm |
| a | = | 220mm |
| p | = | 184mm |
| e | = | 130.1mm |
| i | = | 18mm |
| g | = | 40mm |
| l | = | 56mm |
| s | = | 19 inch |
| j | = | 16mm |
| k | = | 18mm |
| f | = | 160mm |
| z | = | 62.5mm |
| Bi | = | 77.8mm |
| n | = | 33.3mm |
| Bolt Size | = | M16mm |
| Insert No | = | UC215 |
| Housing No | = | FC215 |
