SKU: UCFC212CO-SNR

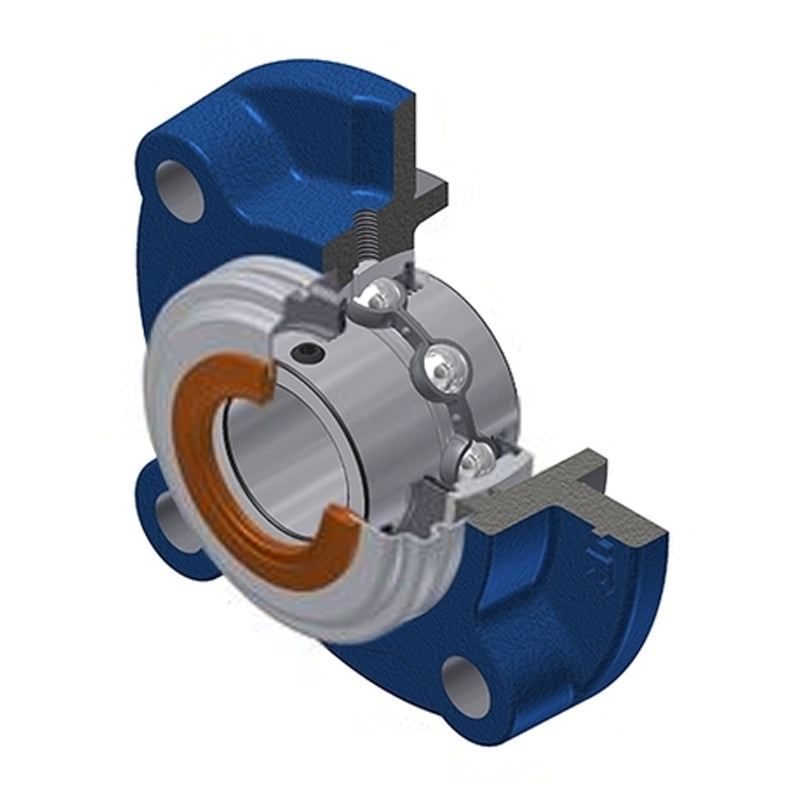

SNR UCFC212CO Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €91.98 ex VAT
- Sale price
- €91,98
- Regular price
-
Not in stock
Quantity Price Breaks
3
€81.86
4
€77.26
9
€76.34
19
€75.42
49
€74.50
99
€73.58
499
€68.99
999
€68.07
1999
€67.15
2999
€66.23
4999
€64.39
SKU:
UCFC212CO-SNR
SNR UCFC212CO Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €91.98 ex VAT
- Sale price
- €91,98
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

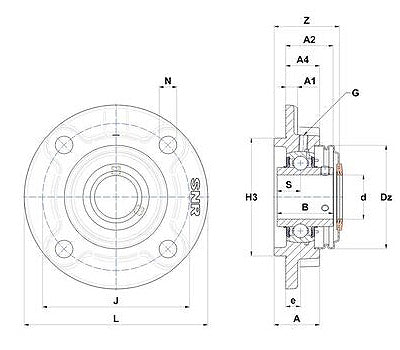

| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 48mm |
| A1 | = | 15mm |
| A2 | = | 56.7mm |
| A4 | = | 36mm |
| B | = | 65.1mm |
| e | = | 17mm |
| H3 | = | 135mm |
| J | = | 160mm |
| L | = | 195mm |
| N | = | 19mm |
| S | = | 25.4mm |
| Dz | = | 120mm |
| Z | = | 73.1mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 5.023 kg |
