SKU: UCFC215D1-NTN
NTN UCFC215D1 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert - Allow 2-3 Days
- Regular price
- €163.49 ex VAT
- Sale price
- €163,49
- Regular price
-
Not in stock
Quantity Price Breaks
3
€145.51
4
€137.33
9
€135.70
19
€134.06
49
€132.43
99
€130.79
499
€122.62
999
€120.98
1999
€119.35
2999
€117.71
4999
€114.44
SKU:
UCFC215D1-NTN
NTN UCFC215D1 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert - Allow 2-3 Days
- Regular price
- €163.49 ex VAT
- Sale price
- €163,49
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

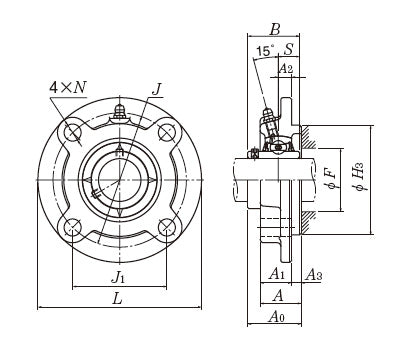

| --- | = | Dimensions |
| Shaft diameter | = | 75mm |
| L | = | 220mm |
| J | = | 184mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 130.1mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 18mm | |
| N | = | 19mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 16mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 40mm | |
| A | = | 56mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 160mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 78.5mm | |
| B | = | 77.8mm |
| S | = | 33.3mm |
| F (Min.) | = | 100mm |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 73.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 49.5 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.8 kN | |
| --- | = | Unit information |
| Mass | = | 7.4 kg |
