SKU: UCFCE215-SNR

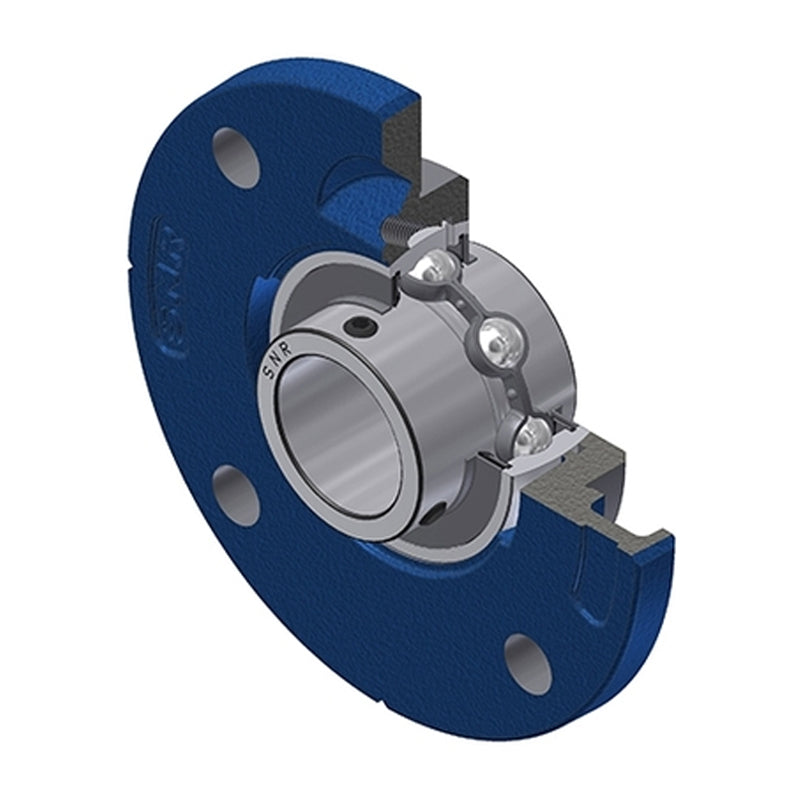

SNR UCFCE215 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert - Allow 2-3 Days
SNR UCFCE215 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert - Allow 2-3 Days
Regular price
€150,51
ex VAT
Regular price
Sale price
€150,51
ex VAT
In stock
Price Break
3+
€114,38
4+
€107,96
9+
€106,67
19+
€105,39
49+
€104,10
99+
€102,82
499+
€96,39
999+
€95,10
1999+
€93,82
2999+
€92,53
4999+
€89,96
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 184mm
Technical
Technical

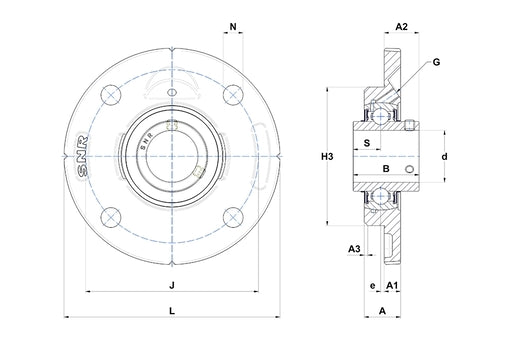

| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| A | 33mm |
| A1 | 18mm |
| A2 | 44.5mm |
| A3 | 6mm |
| B | 77.8mm |
| H3 | 160mm |
| J | 184mm |
| L | 220mm |
| N | 18mm |
| S | 33.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 5.45 kg |
