SKU: UCFCX10-31

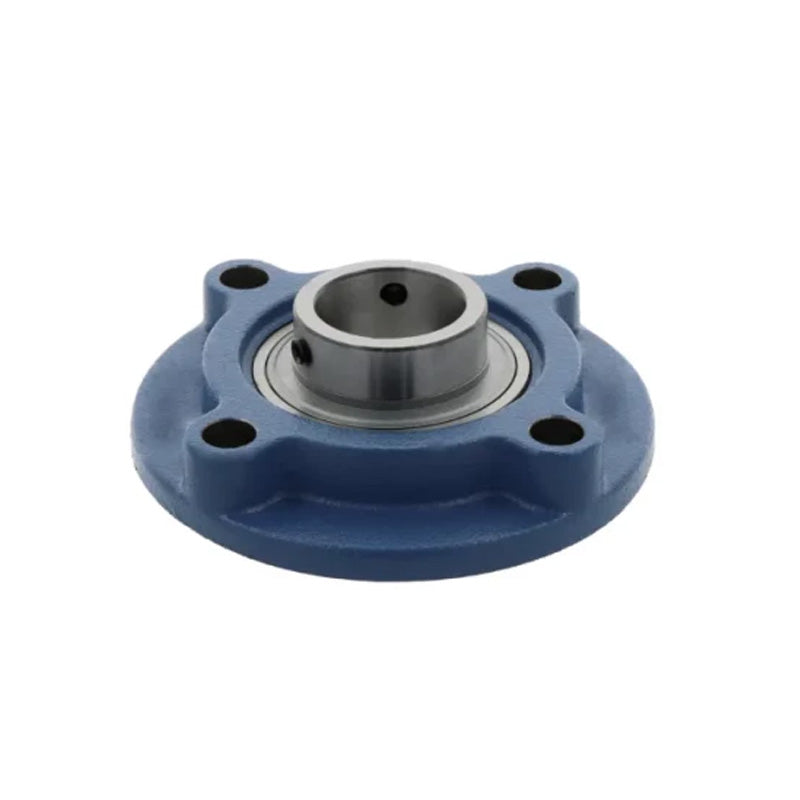

UCFCX10-31 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-15/16 inch Insert
- Regular price
- €43.48 ex VAT
- Sale price
- €43,48
- Regular price
-
In stock
Quantity Price Breaks
3
€38.70
4
€36.52
9
€36.09
19
€35.65
49
€35.22
99
€34.78
499
€32.61
999
€32.18
1999
€31.74
2999
€31.31
4999
€30.44
SKU:
UCFCX10-31
UCFCX10-31 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-15/16 inch Insert
- Regular price
- €43.48 ex VAT
- Sale price
- €43,48
- Regular price
-
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-15/16 inch |
| a | = | 6-3/8 inch |
| p | = | 5-23/64 inch |
| (e) | = | 3-25/32 inch |
| i | = | 9/32 inch |
| s | = | 35/64 inch |
| j | = | 5/8 inch |
| k | = | 7/16 inch |
| g | = | 63/64 inch |
| f | = | 4.6457 inch |
| z | = | 1-19/32 inch |
| B | = | 2.189 inch |
| n | = | 0.874 inch |
| Bolt size | = | 7/16 inch |
| Bearing no | = | UCX10-31 |
| Housing no | = | FCX10 |
| Weight | = | 2.9 kg |
