SKU: UCFCX11-35

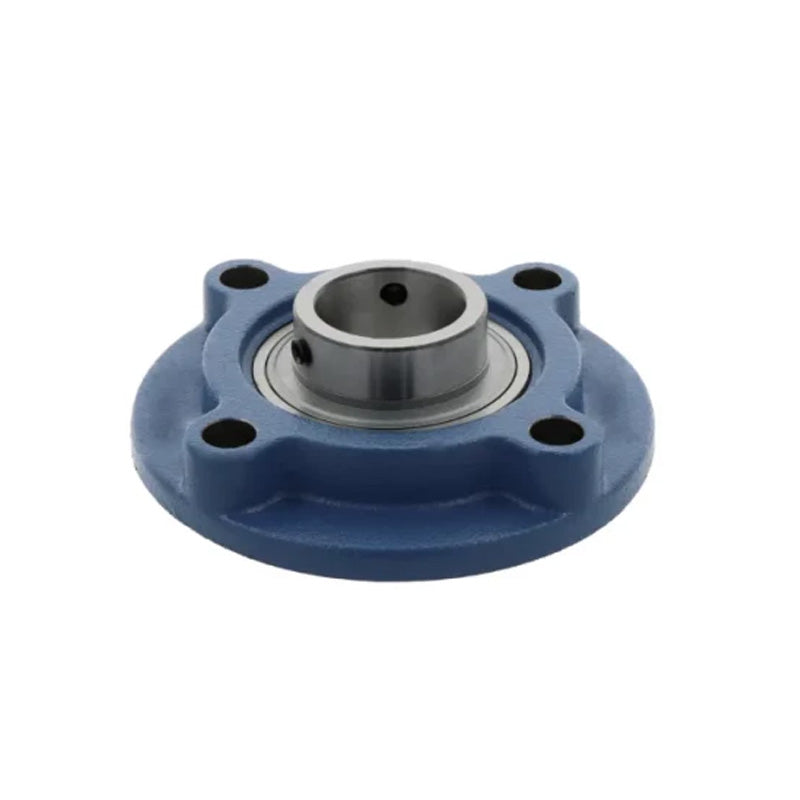

UCFCX11-35 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-3/16 inch Insert
- Regular price
- €67.33 ex VAT
- Sale price
- €67,33
- Regular price
-
Not in stock
Quantity Price Breaks
3
€59.92
4
€56.56
9
€55.88
19
€55.21
49
€54.54
99
€53.86
499
€50.50
999
€49.82
1999
€49.15
2999
€48.48
4999
€47.13
SKU:
UCFCX11-35
UCFCX11-35 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-3/16 inch Insert
- Regular price
- €67.33 ex VAT
- Sale price
- €67,33
- Regular price
-
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 2-3/16 inch |
| a | = | 7-3/32 inch |
| p | = | 5-63/64 inch |
| (e) | = | 4-15/64 inch |
| i | = | 5/32 inch |
| s | = | 5/8 inch |
| j | = | 55/64 inch |
| k | = | 1/2 inch |
| g | = | 1-1/32 inch |
| f | = | 5 inch |
| z | = | 1-23/32 inch |
| B | = | 2.563 inch |
| n | = | 1 inch |
| Bolt size | = | 1/2 inch |
| Bearing no | = | UCX11-35 |
| Housing no | = | FCX11 |
| Weight | = | 3.8 kg |
