SKU: UCFCX12-39

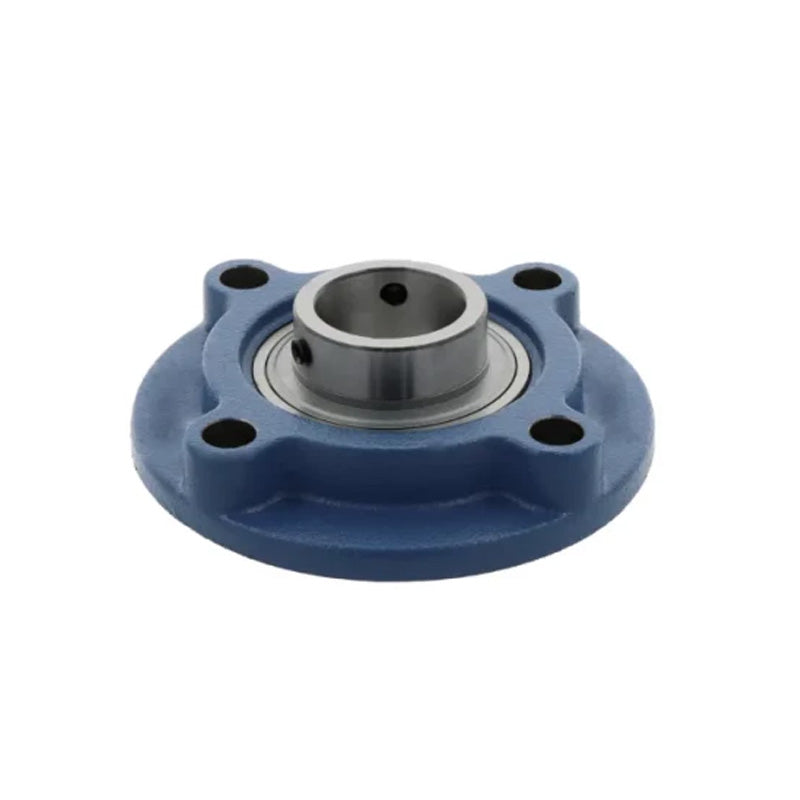

UCFCX12-39 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-7/16 inch Insert
- Regular price
- €108.98 ex VAT
- Sale price
- €108,98
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€96.99
4
€91.54
9
€90.45
19
€89.36
49
€88.27
99
€87.18
499
€81.74
999
€80.65
1999
€79.56
2999
€78.47
4999
€76.29
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 2-7/16 inch |
| a | = | 7-5/8 inch |
| p | = | 6-1/2 inch |
| (e) | = | 4-19/32 inch |
| i | = | 7/16 inch |
| s | = | 5/8 inch |
| j | = | 25/32 inch |
| k | = | 9/16 inch |
| g | = | 1-5/16 inch |
| f | = | 5.5118 inch |
| z | = | 2 inch |
| B | = | 2.563 inch |
| n | = | 1 inch |
| Bolt size | = | 1/2 inch |
| Bearing no | = | UCX12-39 |
| Housing no | = | FCX13 |
| Weight | = | 4.9 kg |
