SKU: UCFE204-12-SNR
SNR UCFE204-12 Imperial Four Bolt Square Cast Iron Flange Housing with 3/4 inch Bore Insert - Allow 2-3 Days
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
Not in stock
Quantity Price Breaks
3
€19.83
4
€18.72
9
€18.49
19
€18.27
49
€18.05
99
€17.82
499
€16.71
999
€16.49
1999
€16.26
2999
€16.04
4999
€15.60
SKU:
UCFE204-12-SNR
SNR UCFE204-12 Imperial Four Bolt Square Cast Iron Flange Housing with 3/4 inch Bore Insert - Allow 2-3 Days
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical

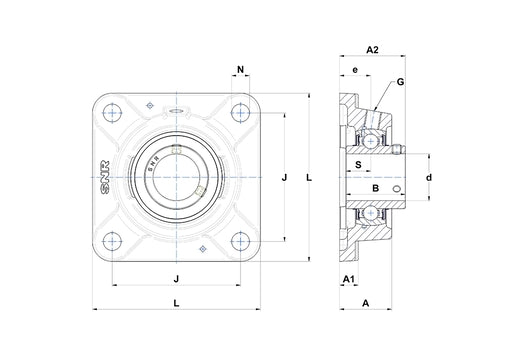

| --- | = | Dimensions |
| Shaft diameter | = | 3/4 inch |
| A | = | 29.5mm |
| A1 | = | 10mm |
| A2 | = | 37.3mm |
| B | = | 31mm |
| e | = | 19mm |
| J | = | 63.5mm |
| L | = | 86mm |
| N | = | 11.5mm |
| S | = | 12.7mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 3.7 Nm |
| Mass | = | 0.67 kg |
