SKU: UCFE213N-SNR

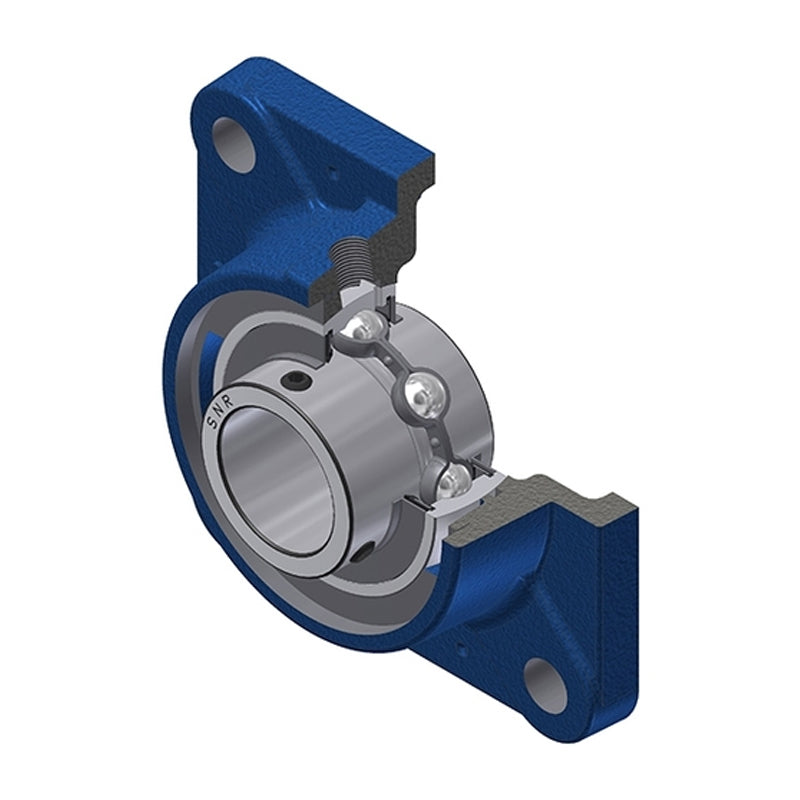

SNR UCFE213N Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
- Regular price
- €105.36 ex VAT
- Sale price
- €105,36
- Regular price
-
Not in stock
Quantity Price Breaks
3
€93.77
4
€88.50
9
€87.45
19
€86.40
49
€85.34
99
€84.29
499
€79.02
999
€77.97
1999
€76.91
2999
€75.86
4999
€73.75
SKU:
UCFE213N-SNR
SNR UCFE213N Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
- Regular price
- €105.36 ex VAT
- Sale price
- €105,36
- Regular price
-
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 65mm |
| A | = | 56mm |
| A1 | = | 18mm |
| A2 | = | 77.7mm |
| B | = | 65.1mm |
| e | = | 38mm |
| J | = | 150mm |
| L | = | 188mm |
| N | = | 18mm |
| S | = | 25.4mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 57.2 kN |
| Static load C0 | = | 40 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 6.3 kg |
