SKU: UCFH208D1-NTN

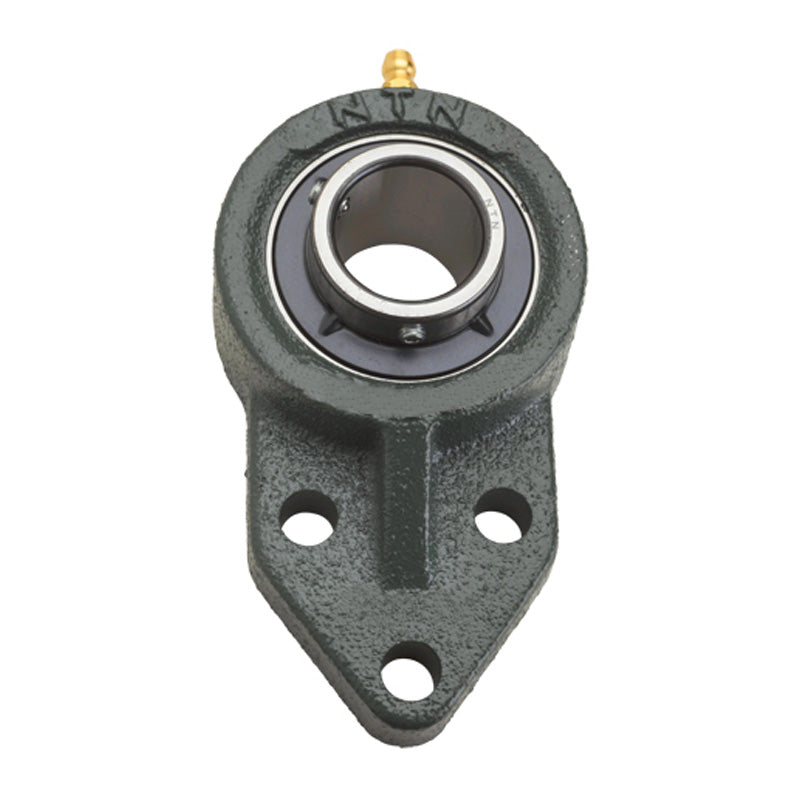

NTN UCFH208D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 40mm Bore
- Regular price
- €43.73 ex VAT
- Sale price
- €43,73
- Regular price
-
In stock
Quantity Price Breaks
3
€38.92
4
€36.73
9
€36.30
19
€35.86
49
€35.42
99
€34.98
499
€32.80
999
€32.36
1999
€31.92
2999
€31.49
4999
€30.61
SKU:
UCFH208D1-NTN
NTN UCFH208D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 40mm Bore
- Regular price
- €43.73 ex VAT
- Sale price
- €43,73
- Regular price
-
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

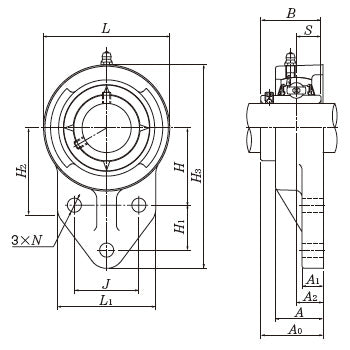

Technical
| Shaft diameter | = | 40mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 164mm | |
| J | = | 50mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 21mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 16mm | |
| A | = | 36mm |
| N | = | 12mm |
| H | = | 60mm |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 41mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 78mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 72mm | |
| L | = | 100mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 51.2mm | |
| B | = | 49.2mm |
| S | = | 19mm |
| Fixing bolt | = | M10 |
| Mass | = | 1.8 kg |
