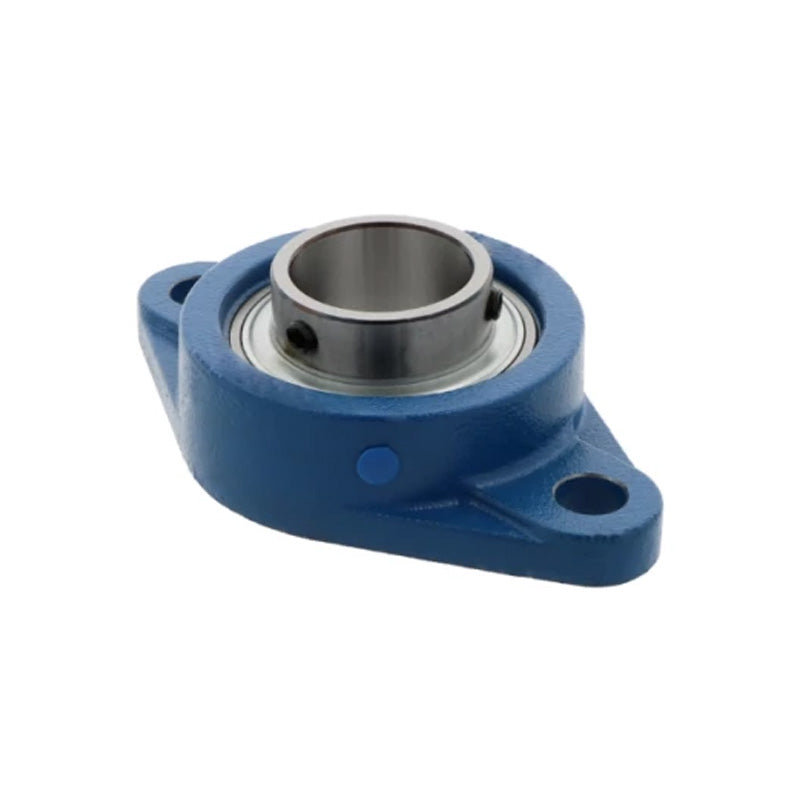

Challenge / FK UCFL211-32 Imperial Cast Iron Two Bolt Oval Flange Housing with 2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCFL211-32 Imperial Cast Iron Two Bolt Oval Flange Housing with 2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price €104,91 ex VAT
Regular price Sale price €104,91 ex VAT
Sale Sold out

Equivalent to: UCFL.211-32

In stock

Price Break
3+ €79,73
5+ €75,25
9+ €74,35
19+ €73,46
49+ €72,56
74+ €71,66
99+ €67,19
199+ €66,29
249+ €65,39
499+ €64,50
999+ €62,71
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 2 inch
Casting Length a 224mm
Recommended Bolt Centres L 184mm
Back of Casting to Centre Line of Bearing i 25mm
Depth of Casting at Bolt g 18mm
Overall Casting Height l 43mm
Bolt Hole Diameter s 19mm
Casting Width b 130mm
Back of Casting to Bearing Front z 58.4mm
Bearing Insert Width Bi 55.6mm
Back of Bearing to Centre Line n 22.2mm
Bolt Size 5/8 inch
Grub Screws x 2 3/8 - 24UNF inch
Load Rating (Dynamic) 3400kg
Load Rating (Static) 2550kg
Max Speed 1600 rev/min
Grease Nipple Thread Size M8
Working Temperature -30°C to +120°C
Insert No UC211-32
Housing No FL211
