SKU: UCFL.211.TS.CHAL

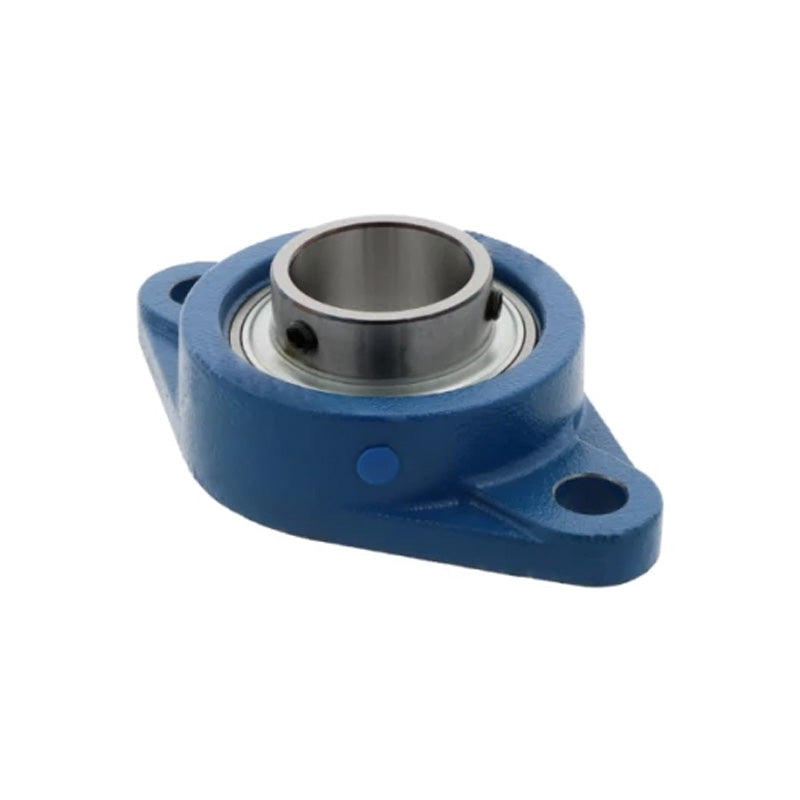

Challenge / FK UCFL211 Metric Cast Iron Two Bolt Oval Flange Housing with 55mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Equivalent to: UCFL.211
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
UCFL Cast Iron Two Bolt Oval Flange Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 55mm
- Style:
- UCFL
- Bolt Hole Centres:
- 184mm
Technical
| Shaft Diameter d | 55mm |
|---|---|
| Casting Length a | 224mm |
| Recommended Bolt Centres L | 184mm |
| Back of Casting to Centre Line of Bearing i | 25mm |
| Depth of Casting at Bolt g | 18mm |
| Overall Casting Height l | 43mm |
| Bolt Hole Diameter s | 19mm |
| Casting Width b | 130mm |
| Back of Casting to Bearing Front z | 58.4mm |
| Bearing Insert Width Bi | 55.6mm |
| Back of Bearing to Centre Line n | 22.2mm |
| Bolt Size | M16 |
| Grub Screws x 2 | M10X1.25mm |
| Load Rating (Dynamic) | 3400kg |
| Load Rating (Static) | 2550kg |
| Max Speed | 1600 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC211 |
| Housing No | FL211 |
