SKU: UCFL.213.TS.CHAL

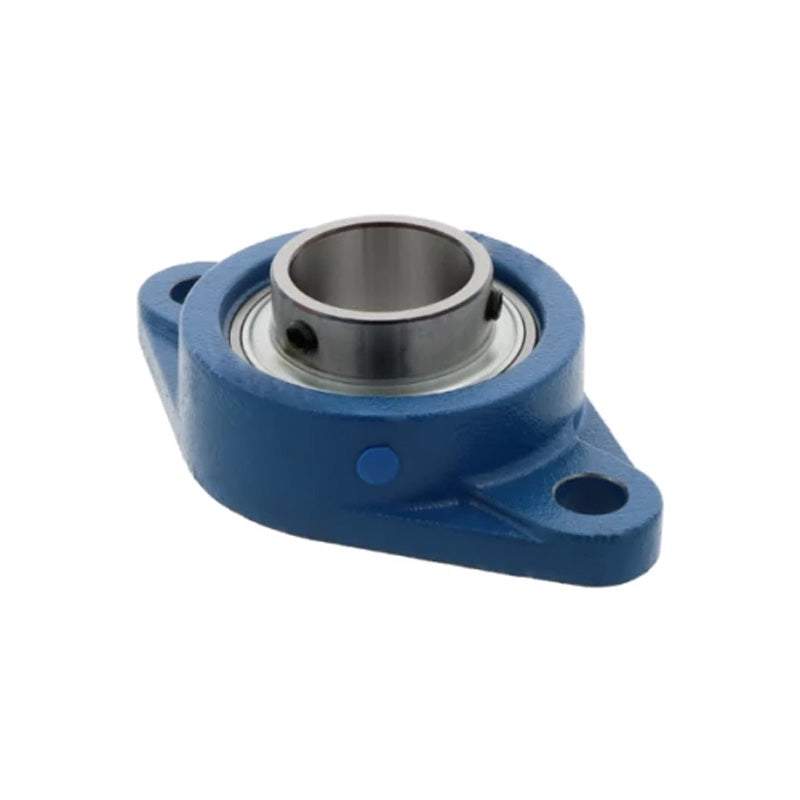

Challenge / FK UCFL213 Metric Cast Iron Two Bolt Oval Flange Housing with 65mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Equivalent to: UCFL.213
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
UCFL Cast Iron Two Bolt Oval Flange Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 65mm
- Style:
- UCFL
- Bolt Hole Centres:
- 210mm
Technical
| Shaft Diameter d | 65mm |
|---|---|
| Casting Length a | 258mm |
| Recommended Bolt Centres L | 210mm |
| Back of Casting to Centre Line of Bearing i | 30mm |
| Depth of Casting at Bolt g | 22mm |
| Overall Casting Height l | 50mm |
| Bolt Hole Diameter s | 23mm |
| Casting Width b | 155mm |
| Back of Casting to Bearing Front z | 69.7mm |
| Bearing Insert Width Bi | 65.1mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Bolt Size | M20 |
| Grub Screws x 2 | M10x1.25mm |
| Load Rating (Dynamic) | 4480kg |
| Load Rating (Static) | 3470kg |
| Max Speed | 1400 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC213 |
| Housing No | FL213 |
