SKU: UCFL208L3-SNR
SNR UCFL208L3 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Triple Lip Seal
- Regular price
- €65.18 ex VAT
- Sale price
- €65,18
- Regular price
-
In stock
Quantity Price Breaks
3
€58.01
4
€54.75
9
€54.10
19
€53.45
49
€52.80
99
€52.14
499
€48.89
999
€48.23
1999
€47.58
2999
€46.93
4999
€45.63
SKU:
UCFL208L3-SNR
SNR UCFL208L3 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Triple Lip Seal
- Regular price
- €65.18 ex VAT
- Sale price
- €65,18
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

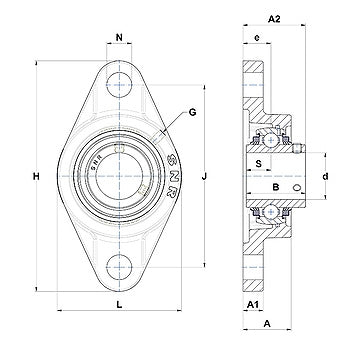

| --- | = | Dimensions |
| Shaft diameter d | = | 40mm |
| A | = | 36mm |
| A1 | = | 14mm |
| A2 | = | 51.2mm |
| B | = | 49.2mm |
| e | = | 21mm |
| H | = | 175mm |
| J | = | 144mm |
| L | = | 100mm |
| N | = | 16mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.46 kg |
