SKU: UCFL209CO-SNR

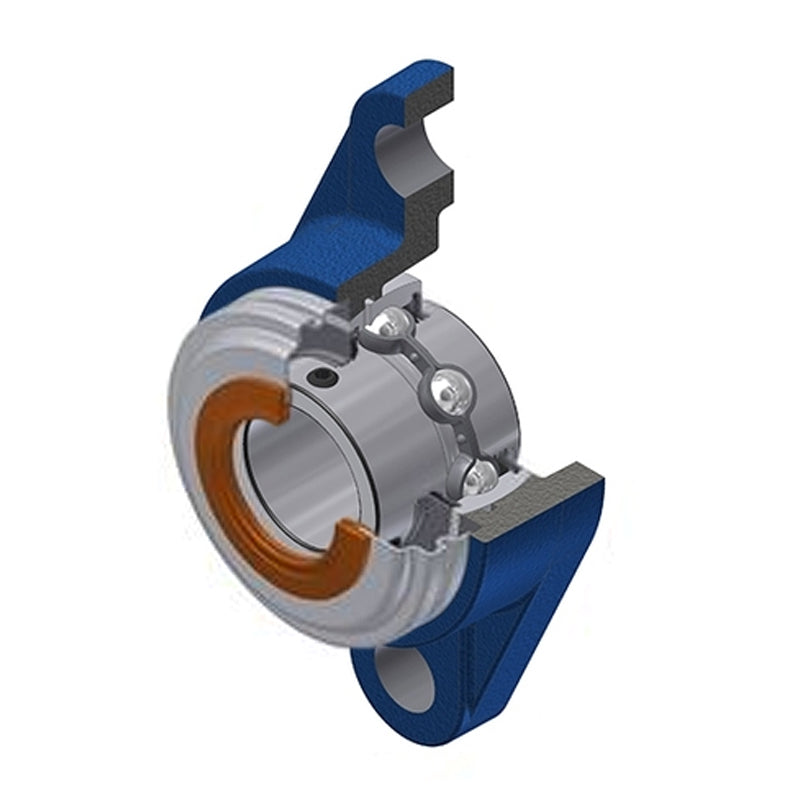

SNR UCFL209CO Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €58.86 ex VAT
- Sale price
- €58,86
- Regular price
-
Not in stock
Quantity Price Breaks
3
€52.39
4
€49.44
9
€48.85
19
€48.27
49
€47.68
99
€47.09
499
€44.15
999
€43.56
1999
€42.97
2999
€42.38
4999
€41.20
SKU:
UCFL209CO-SNR
SNR UCFL209CO Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €58.86 ex VAT
- Sale price
- €58,86
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

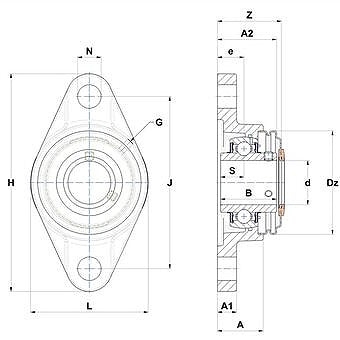

| --- | = | Dimensions |
| Shaft diameter d | = | 45mm |
| A | = | 38mm |
| A1 | = | 16mm |
| A2 | = | 52.2mm |
| B | = | 49.2mm |
| e | = | 22mm |
| H | = | 188mm |
| J | = | 148mm |
| L | = | 108mm |
| N | = | 19mm |
| S | = | 19mm |
| Dz | = | 95mm |
| Z | = | 56.9mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.899 kg |
