SKU: UCFL210CO-SNR

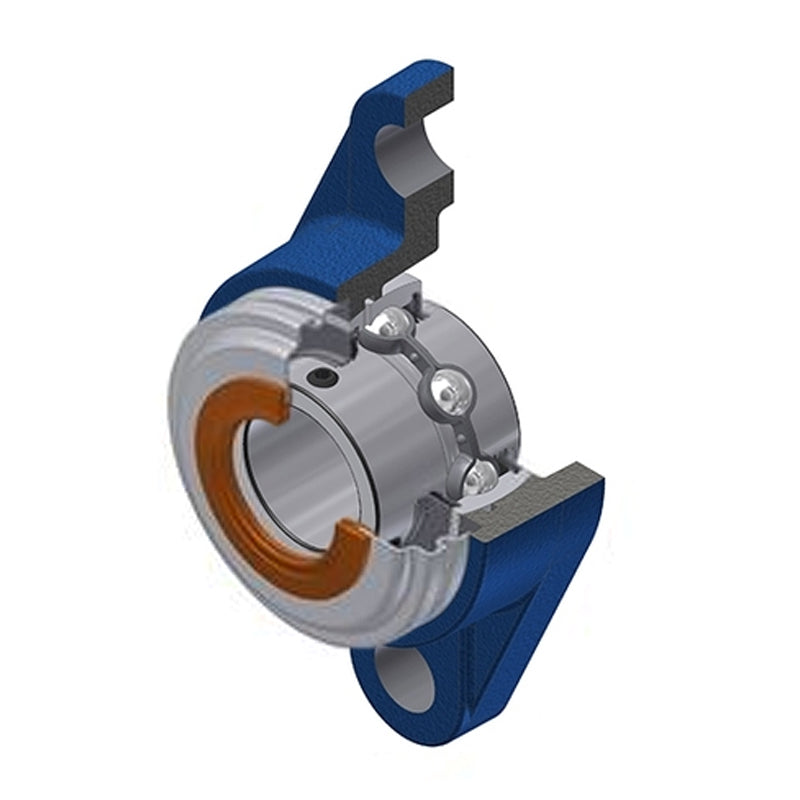

SNR UCFL210CO Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€53.36
4
€50.36
9
€49.76
19
€49.16
49
€48.56
99
€47.96
499
€44.96
999
€44.36
1999
€43.76
2999
€43.16
4999
€41.97
SKU:
UCFL210CO-SNR
SNR UCFL210CO Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

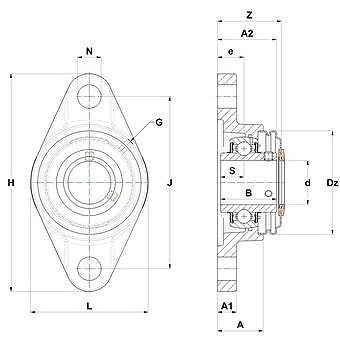

| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 40mm |
| A1 | = | 16mm |
| A2 | = | 54.6mm |
| B | = | 51.6mm |
| e | = | 22mm |
| H | = | 197mm |
| J | = | 157mm |
| L | = | 115mm |
| N | = | 19mm |
| S | = | 19mm |
| Dz | = | 100mm |
| Z | = | 59.8mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 2.237 kg |
