SKU: UCFL218T-56E-MB

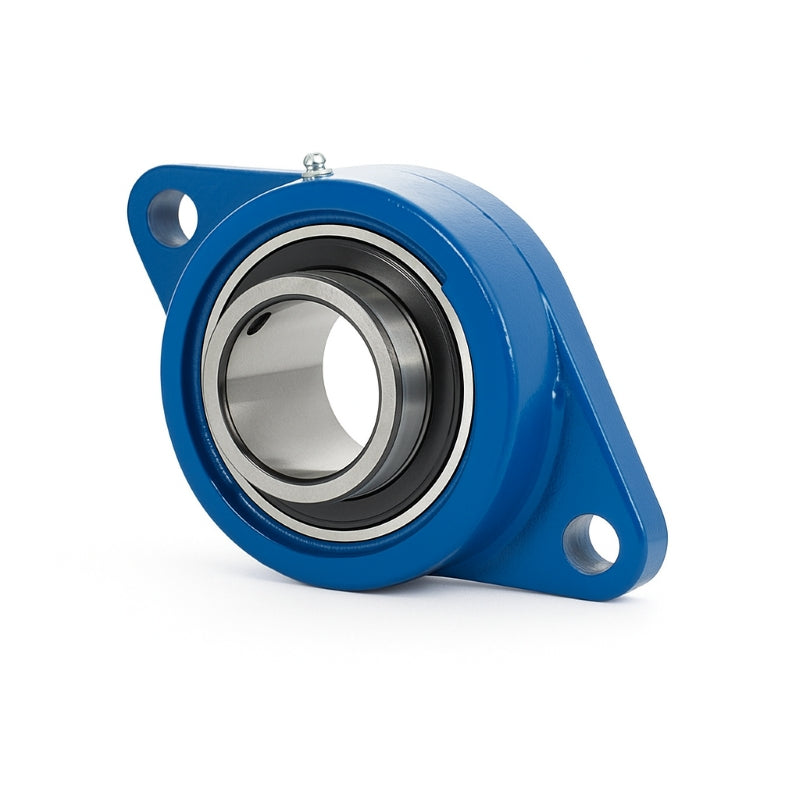

Major Brand UCFL218T-56E Imperial Steel Two Bolt Oval Housing for Bearing Inserts with 3-1/2 inch Outer Diameter - Allow 3-4 Weeks
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
Steel Two Bolt flanged Housing: This durable and versatile bearing unit is designed for reliable shaft support in a wide range of industrial applications. Constructed from high-quality steel for strength and stability and a grease nipple for easy re-lubrication and extended service life. Its two-bolt mounting design ensures quick installation and secure positioning, making it ideal for machinery, conveyors, and general engineering use. If required these housing units can be supplied with a pre-fitted bearing insert secured with grub screws for a firm hold, please contact our sales department for more information.
Benefits: Zero downtime, heavy duty, durable
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- UCFL200
- Bolt Hole Centres:
- 248mm
Technical
| Housing only | FL217T |
|---|---|
| Bearing only | UC217-56 |
| D - Bore | 88.9mm = 3.5 (3-1/2) inch |
| E - Bolt Hole Centre | 248mm |
| SPH | 150mm |
| A | 305mm |
| I | 36mm |
| G | 22mm |
| L | 63mm |
| S | 25mm |
| B | 190mm |
| Bolt | M22 |
