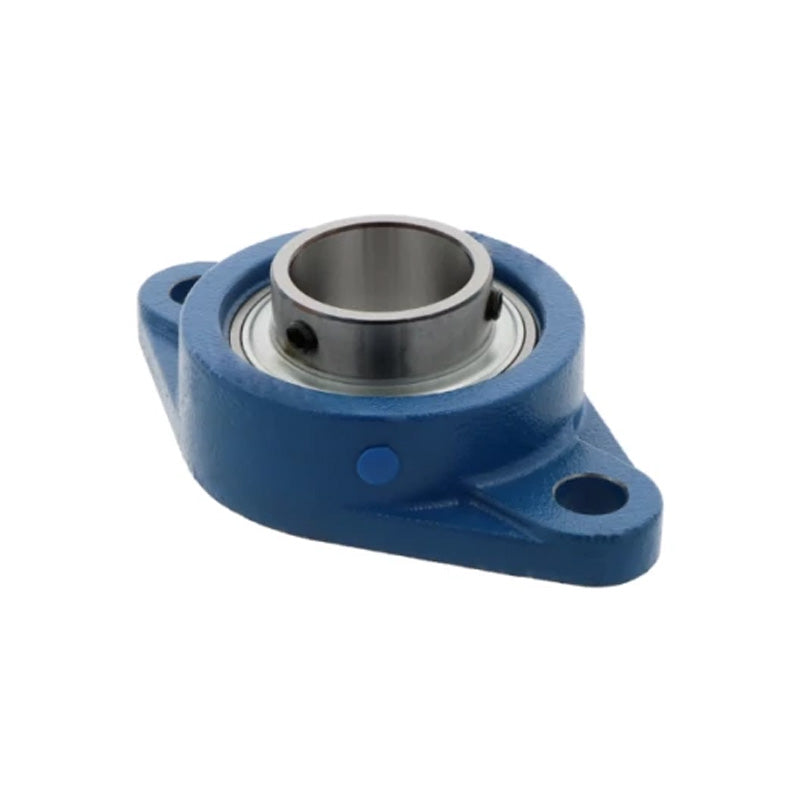

UCFL309 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 45mm Bore
UCFL309 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 45mm Bore
Regular price
€56,01
ex VAT
Regular price
Sale price
€56,01
ex VAT
In stock
Price Break
3+
€42,57
4+
€40,18
9+
€39,70
19+
€39,22
49+
€38,74
99+
€38,26
499+
€35,87
999+
€35,39
1999+
€34,92
2999+
€34,44
4999+
€33,48
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCFL
- Bolt Hole Centres:
- 177mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 230mm |
| e | 177mm |
| i | 25mm |
| g | 18mm |
| l | 44mm |
| s | 25mm |
| b | 125mm |
| z | 60mm |
| B | 57mm |
| n | 22mm |
| Bolt size | M22 |
| Bearing no | UC309 |
| Housing no | FL309 |
| Weight | 3.117 kg |
