SKU: UCFL317

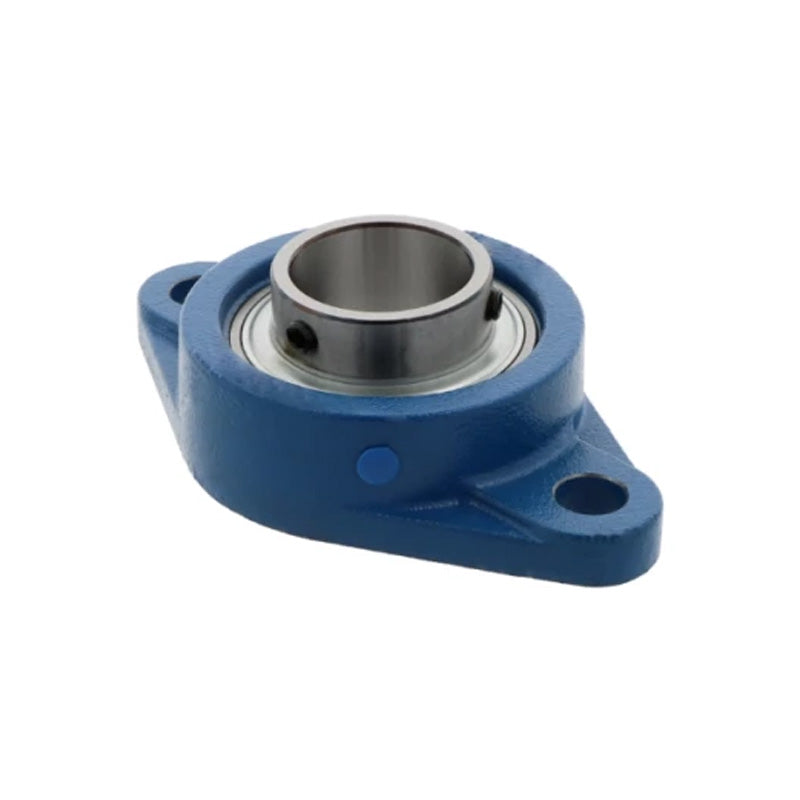

UCFL317 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 85mm Bore
UCFL317 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 85mm Bore
Regular price
€248,76
ex VAT
Regular price
Sale price
€248,76
ex VAT
In stock
Price Break
3+
€189,05
4+
€178,43
9+
€176,30
19+
€174,18
49+
€172,05
99+
€169,93
499+
€159,31
999+
€157,18
1999+
€155,06
2999+
€152,94
4999+
€148,69
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Style:
- UCFL
- Bolt Hole Centres:
- 300mm
Technical
Technical
| d | 85mm |
|---|---|
| a | 370mm |
| e | 300mm |
| i | 44mm |
| g | 32mm |
| l | 74mm |
| s | 38mm |
| b | 220mm |
| z | 100mm |
| B | 96mm |
| n | 40mm |
| Bolt size | M33 |
| Bearing no | UC317 |
| Housing no | FL317 |
| Weight | 14.338 kg |
