SKU: UCFL319

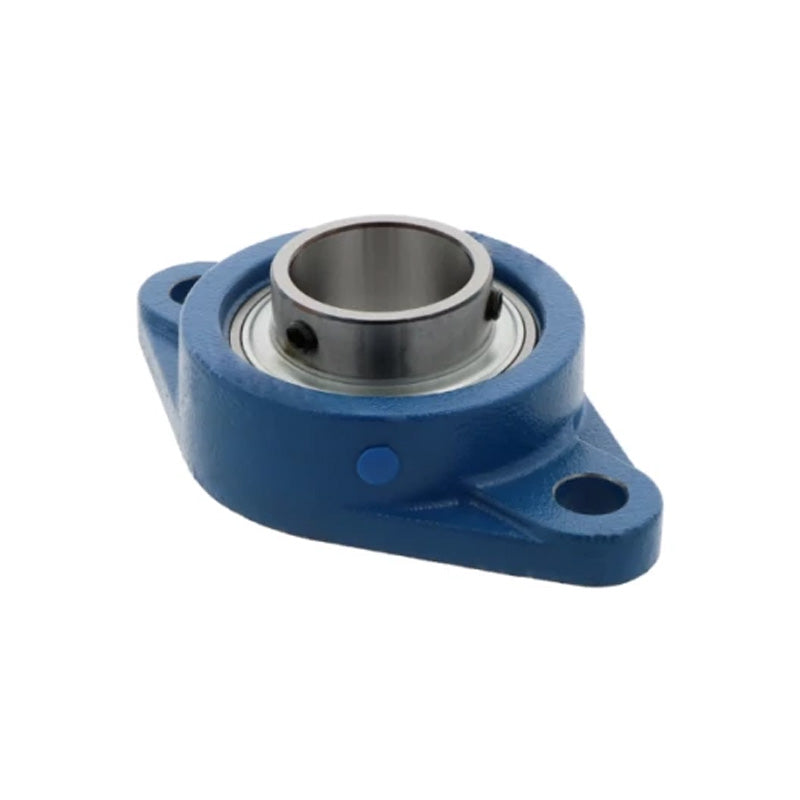

UCFL319 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 95mm Bore
UCFL319 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 95mm Bore
Regular price
€356,92
ex VAT
Regular price
Sale price
€356,92
ex VAT
In stock
Price Break
3+
€271,25
4+
€256,01
9+
€252,96
19+
€249,92
49+
€246,87
99+
€243,82
499+
€228,58
999+
€225,53
1999+
€222,49
2999+
€219,44
4999+
€213,34
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95mm
- Style:
- UCFL
- Bolt Hole Centres:
- 330mm
Technical
Technical
| d | 95mm |
|---|---|
| a | 405mm |
| e | 330mm |
| i | 59mm |
| g | 40mm |
| l | 94mm |
| s | 41mm |
| b | 250mm |
| z | 121mm |
| B | 103mm |
| n | 41mm |
| Bolt size | M36 |
| Bearing no | UC319 |
| Housing no | FL319 |
| Weight | 21.712 kg |
