SKU: UCFLE204-12T20-SNR

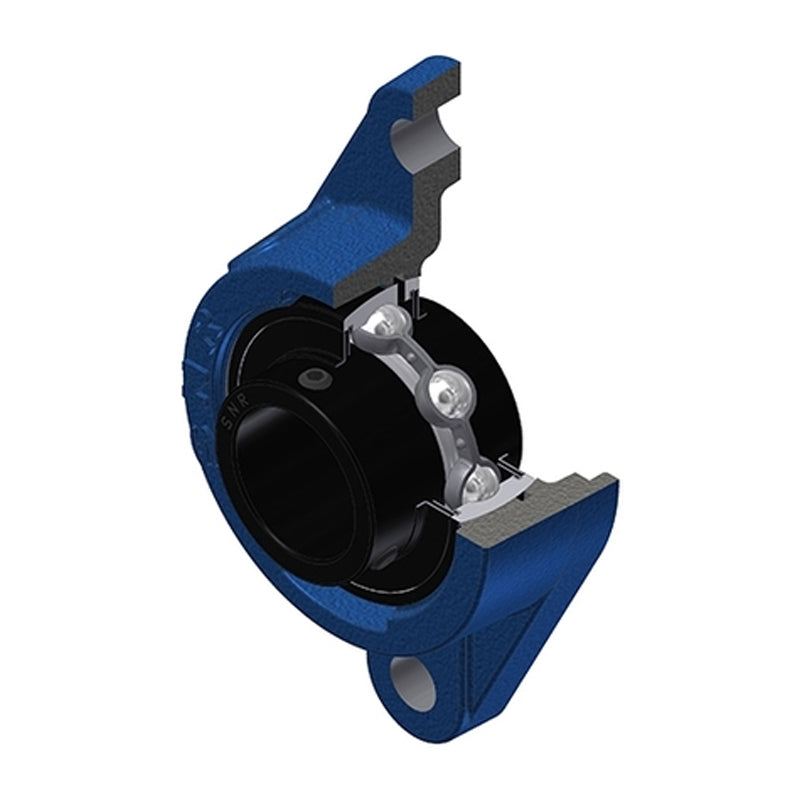

SNR UCFLE204-12T20 Imperial Two Bolt Oval Cast Iron Flange Housing with 3/4 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Not in stock
Quantity Price Breaks
3
€40.74
4
€38.46
9
€38.00
19
€37.54
49
€37.08
99
€36.62
499
€34.34
999
€33.88
1999
€33.42
2999
€32.96
4999
€32.05
SKU:
UCFLE204-12T20-SNR
SNR UCFLE204-12T20 Imperial Two Bolt Oval Cast Iron Flange Housing with 3/4 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 3/4 inch |
| A | = | 30.3mm |
| A1 | = | 10mm |
| A2 | = | 37.3mm |
| B | = | 31mm |
| e | = | 19mm |
| H | = | 112mm |
| J | = | 90mm |
| L | = | 61mm |
| N | = | 11.5mm |
| S | = | 12.7mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 200& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 3.7 Nm |
| Mass | = | 0.47 kg |
