SKU: UCFLX09D1-NTN

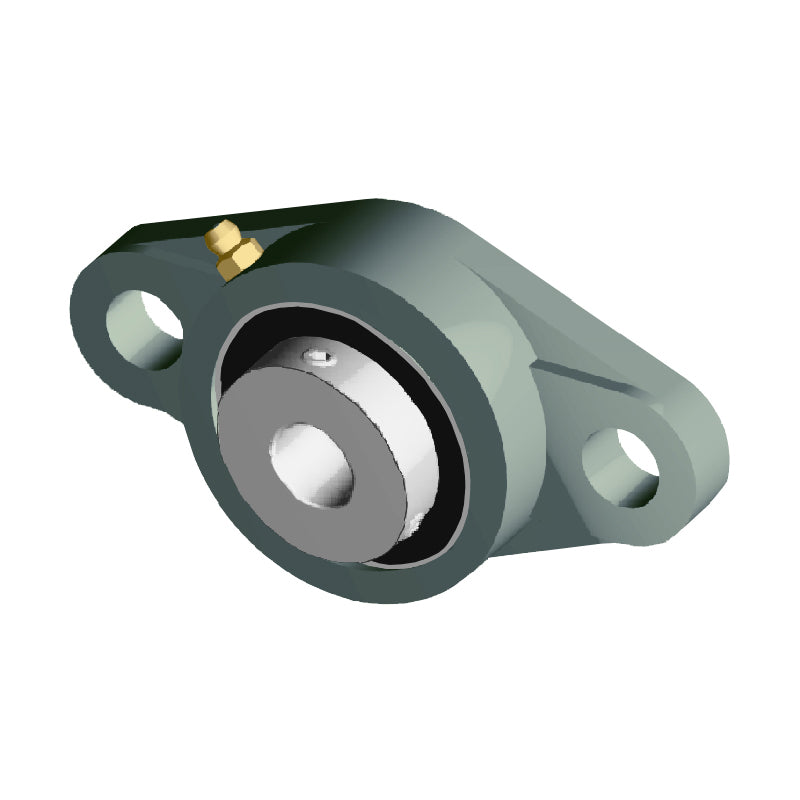

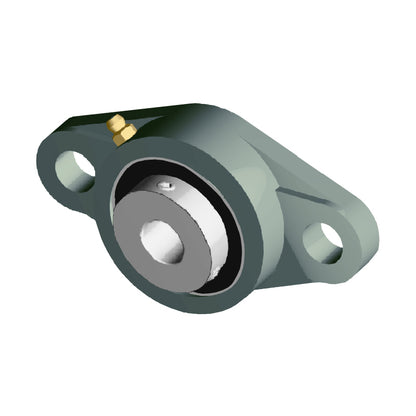

NTN UCFLX09D1 Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
NTN UCFLX09D1 Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
Regular price
€65,11
ex VAT
Regular price
Sale price
€65,11
ex VAT
In stock
Price Break
3+
€49,48
4+
€46,70
9+
€46,15
19+
€45,59
49+
€45,04
99+
€44,48
499+
€41,70
999+
€41,14
1999+
€40,59
2999+
€40,03
4999+
€38,92
Quantity
Couldn't load pickup availability
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 157mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| H | 189mm |
| J | 157mm |
| A<sub>2</sub> | 23mm |
| A<sub>1</sub> | 16mm |
| A | 40mm |
| N | 16mm |
| L | 116mm |
| A<sub>0</sub> | 55.6mm |
| B | 51.6mm |
| S | 19mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 2.2 kg |
