SKU: UCFS308-SNR

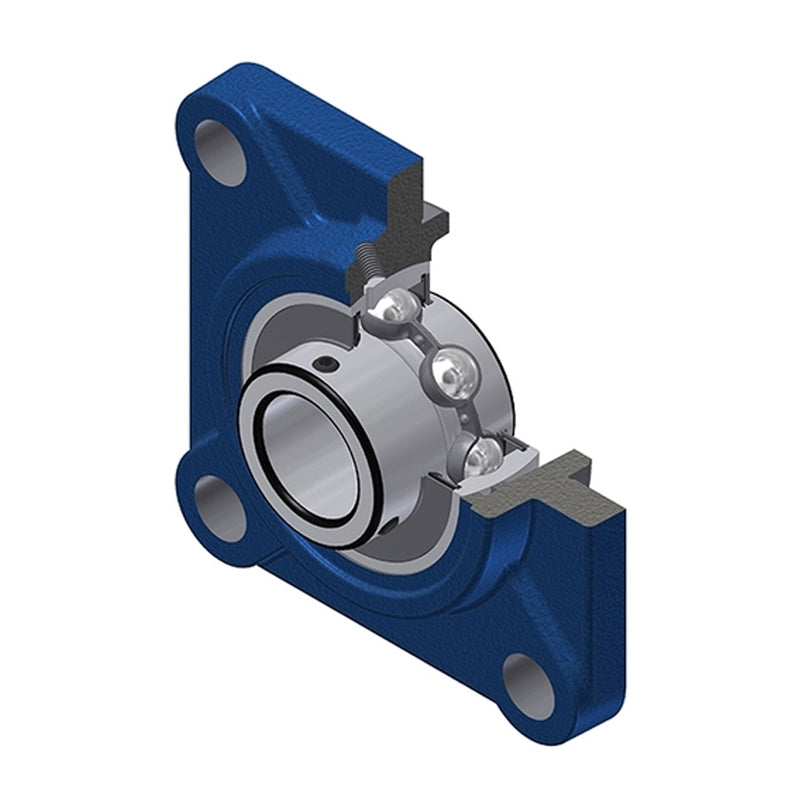

SNR UCFS308 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
- Regular price
- €69.94 ex VAT
- Sale price
- €69,94
- Regular price
-
Not in stock
Quantity Price Breaks
3
€62.25
4
€58.75
9
€58.05
19
€57.35
49
€56.65
99
€55.95
499
€52.46
999
€51.76
1999
€51.06
2999
€50.36
4999
€48.96
SKU:
UCFS308-SNR
SNR UCFS308 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
- Regular price
- €69.94 ex VAT
- Sale price
- €69,94
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 40mm |
| A | = | 40mm |
| A1 | = | 17mm |
| A2 | = | 46mm |
| A4 | = | 30mm |
| B | = | 52mm |
| e | = | 13mm |
| H3 | = | 115mm |
| J | = | 112mm |
| L | = | 150mm |
| N | = | 19mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 40.56 kN |
| Static load C0 | = | 24 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.06 kg |
