SKU: UCFS310-SNR

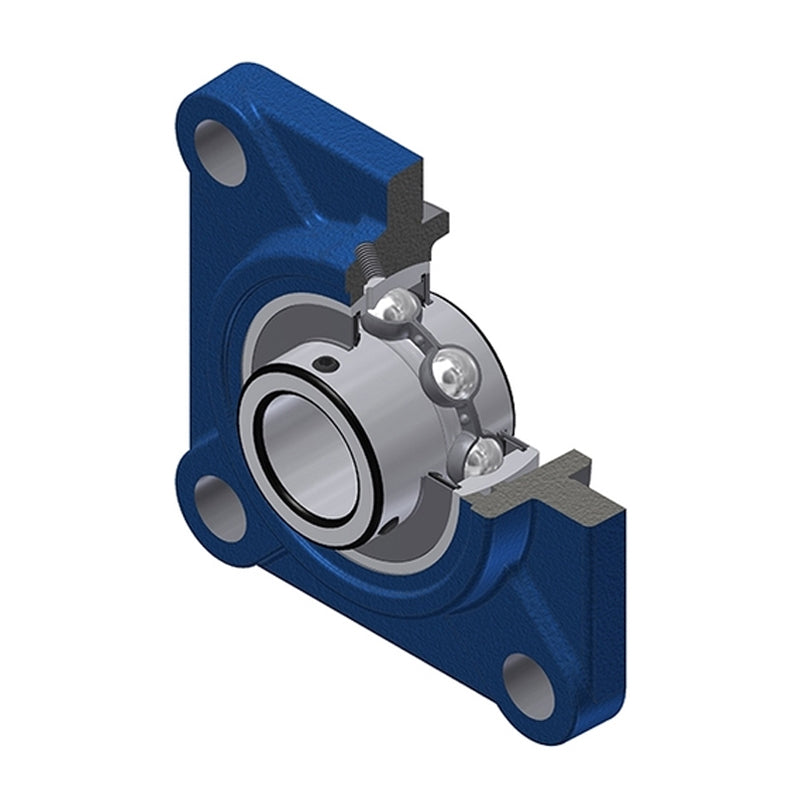

SNR UCFS310 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- €92.65 ex VAT
- Sale price
- €92,65
- Regular price
-
Not in stock
Quantity Price Breaks
3
€82.46
4
€77.83
9
€76.90
19
€75.97
49
€75.05
99
€74.12
499
€69.49
999
€68.56
1999
€67.63
2999
€66.71
4999
€64.86
SKU:
UCFS310-SNR
SNR UCFS310 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- €92.65 ex VAT
- Sale price
- €92,65
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 48mm |
| A1 | = | 19mm |
| A2 | = | 55mm |
| A4 | = | 36mm |
| B | = | 61mm |
| e | = | 16mm |
| H3 | = | 140mm |
| J | = | 132mm |
| L | = | 175mm |
| N | = | 23mm |
| S | = | 22mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 62 kN |
| Static load C0 | = | 37.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 4.85 kg |
