SKU: UCFS318-SNR

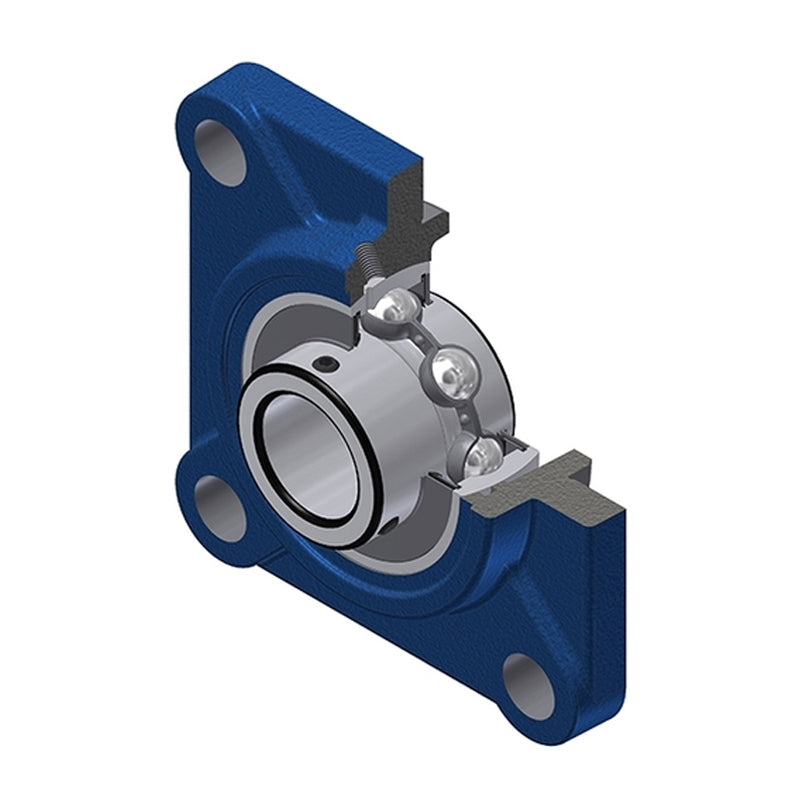

SNR UCFS318 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert - Allow 2-3 Days
- Regular price
- €321.36 ex VAT
- Sale price
- €321,36
- Regular price
-
Not in stock
Quantity Price Breaks
3
€286.01
4
€269.94
9
€266.73
19
€263.52
49
€260.30
99
€257.09
499
€241.02
999
€237.81
1999
€234.59
2999
€231.38
4999
€224.95
SKU:
UCFS318-SNR
SNR UCFS318 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert - Allow 2-3 Days
- Regular price
- €321.36 ex VAT
- Sale price
- €321,36
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical

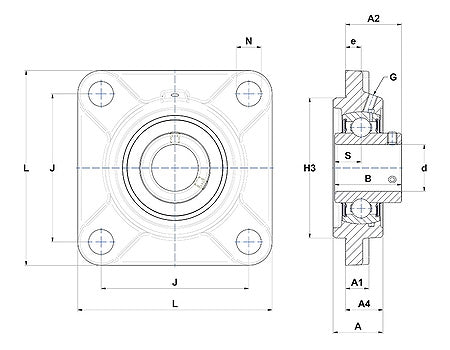

| --- | = | Dimensions |
| Shaft diameter d | = | 90mm |
| A | = | 76mm |
| A1 | = | 30mm |
| A2 | = | 80mm |
| A4 | = | 56mm |
| B | = | 96mm |
| e | = | 24mm |
| H3 | = | 240mm |
| J | = | 216mm |
| L | = | 280mm |
| N | = | 35mm |
| S | = | 40mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 143 kN |
| Static load C0 | = | 108 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 64 Nm |
| Mass | = | 21.27 kg |
