SKU: UCFS328-SNR

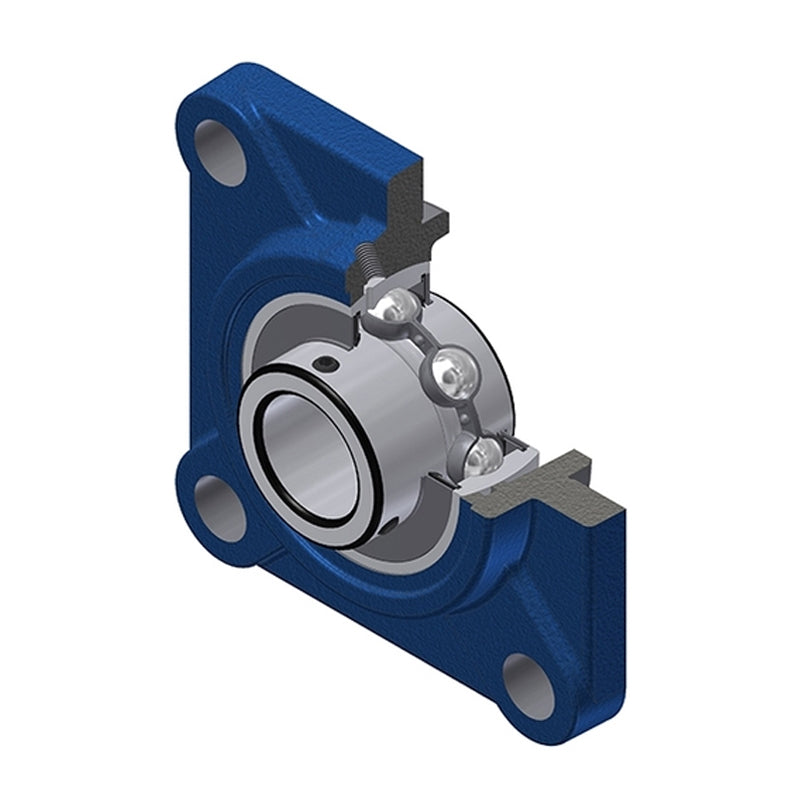

SNR UCFS328 Metric Four Bolt Square Cast Iron Flange Housing with 145mm Bore Insert - Allow 2-3 Days
- Regular price
- €1.268.22 ex VAT
- Sale price
- €1.268,22
- Regular price
-
Not in stock
Quantity Price Breaks
3
€1.128.72
4
€1.065.30
9
€1.052.62
19
€1.039.94
49
€1.027.26
99
€1.014.58
499
€951.17
999
€938.48
1999
€925.80
2999
€913.12
4999
€887.75
SKU:
UCFS328-SNR
SNR UCFS328 Metric Four Bolt Square Cast Iron Flange Housing with 145mm Bore Insert - Allow 2-3 Days
- Regular price
- €1.268.22 ex VAT
- Sale price
- €1.268,22
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 145mm |
| A | = | 125mm |
| A1 | = | 55mm |
| A2 | = | 131mm |
| A4 | = | 95mm |
| B | = | 145mm |
| e | = | 45mm |
| H3 | = | 400mm |
| J | = | 350mm |
| L | = | 450mm |
| N | = | 41mm |
| S | = | 59mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 275 kN |
| Static load C0 | = | 272 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 120 Nm |
| Mass | = | 92.7 kg |
