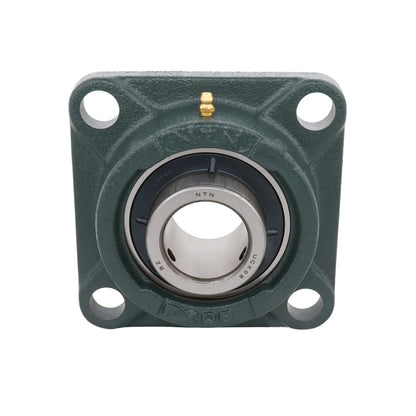

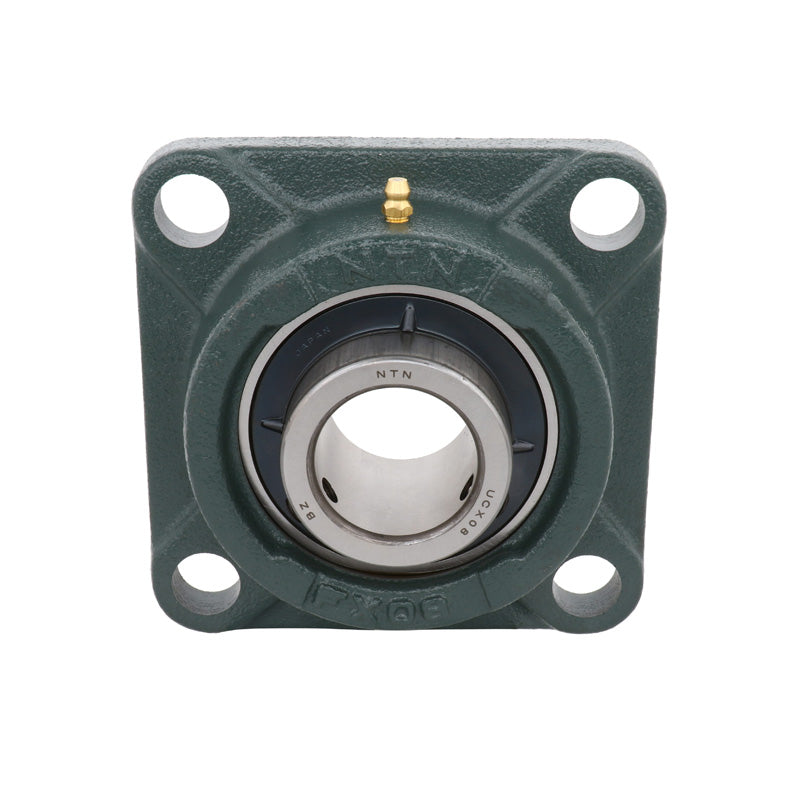

NTN UCFX15-215D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
NTN UCFX15-215D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
Regular price
€158,90
ex VAT
Regular price
Sale price
€158,90
ex VAT
In stock
Price Break
3+
€120,76
4+
€113,97
9+
€112,61
19+
€111,26
49+
€109,90
99+
€108,54
499+
€101,76
999+
€100,40
1999+
€99,05
2999+
€97,69
4999+
€94,98
Quantity
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 5-63/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-15/16 inch |
| L | 7-3/4 inch |
| J | 5-63/64 inch |
| A<sub>2</sub> | 1-37/64 inch |
| A<sub>1</sub> | 15/16 inch |
| A | 2-11/16 inch |
| N | 29/32 inch |
| A<sub>0</sub> | 3-33/64 inch |
| B | 3.252 inch |
| S | 1.311 inch |
| Fixing bolt | 3/4 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 19 lbs |
