SKU: UCFX20-313D1-NTN

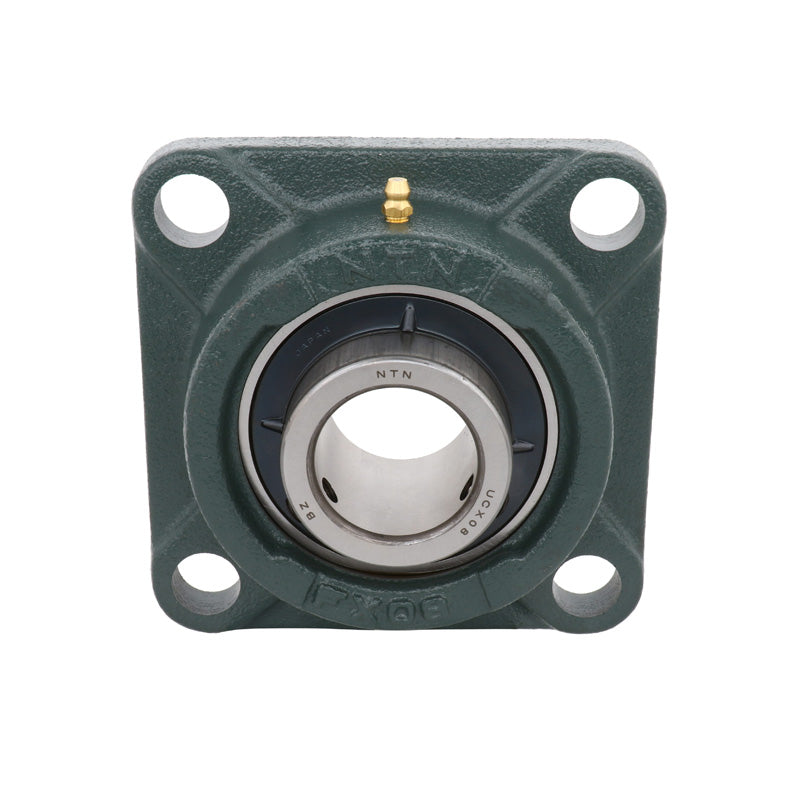

NTN UCFX20-313D1 Imperial Four Bolt Square Cast Iron Flange Housing with 3-13/16 inch Bore Insert - Allow 2-3 Days
NTN UCFX20-313D1 Imperial Four Bolt Square Cast Iron Flange Housing with 3-13/16 inch Bore Insert - Allow 2-3 Days
Out of stock
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 96.84mm = 3.813 (3-13/16) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 8-5/16 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3-13/16 inch |
| L | 10-9/16 inch |
| J | 8-5/16 inch |
| A<sub>2</sub> | 2-21/64 inch |
| A<sub>1</sub> | 1-7/32 inch |
| A | 3-13/16 inch |
| N | 1-7/32 inch |
| A<sub>0</sub> | 5-1/64 inch |
| B | 4.626 inch |
| S | 1.937 inch |
| Fixing bolt | 1 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 147 kN |
| Static load C<sub>0r</sub> | 105 kN |
| Fatigue load limit C<sub>u</sub> | 6.75 kN |
| --- | Unit information |
| Mass | 46 lbs |
