SKU: UCHA201
UCHA201 Metric Cast Iron Hanger Bearing Unit with 12mm Bore Insert
- Regular price
- €15.76 ex VAT
- Sale price
- €15,76
- Regular price
-
In stock
Quantity Price Breaks
3
€14.03
4
€13.24
9
€13.08
19
€12.92
49
€12.77
99
€12.61
499
€11.82
999
€11.66
1999
€11.50
2999
€11.35
4999
€11.03
SKU:
UCHA201
UCHA201 Metric Cast Iron Hanger Bearing Unit with 12mm Bore Insert
- Regular price
- €15.76 ex VAT
- Sale price
- €15,76
- Regular price
-
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

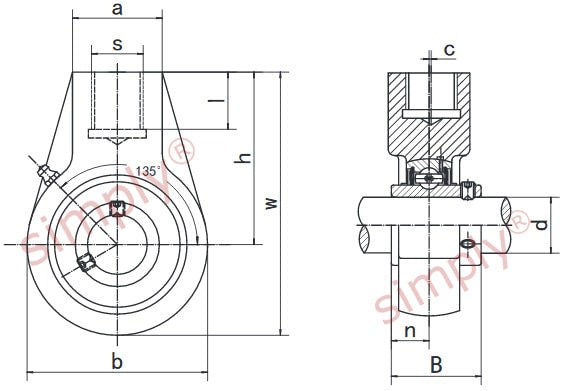

Technical
| d | = | 12mm |
| h | = | 64mm |
| w | = | 96mm |
| b | = | 64mm |
| c | = | 0mm |
| a | = | 40mm |
| s | = | G-3/4 |
| l | = | 19mm |
| B | = | 31mm |
| n | = | 12.7mm |
| Bearing no | = | UC201 |
| Housing no | = | HA201 |
| Weight | = | 0.637 kg |
