SKU: UCHA210

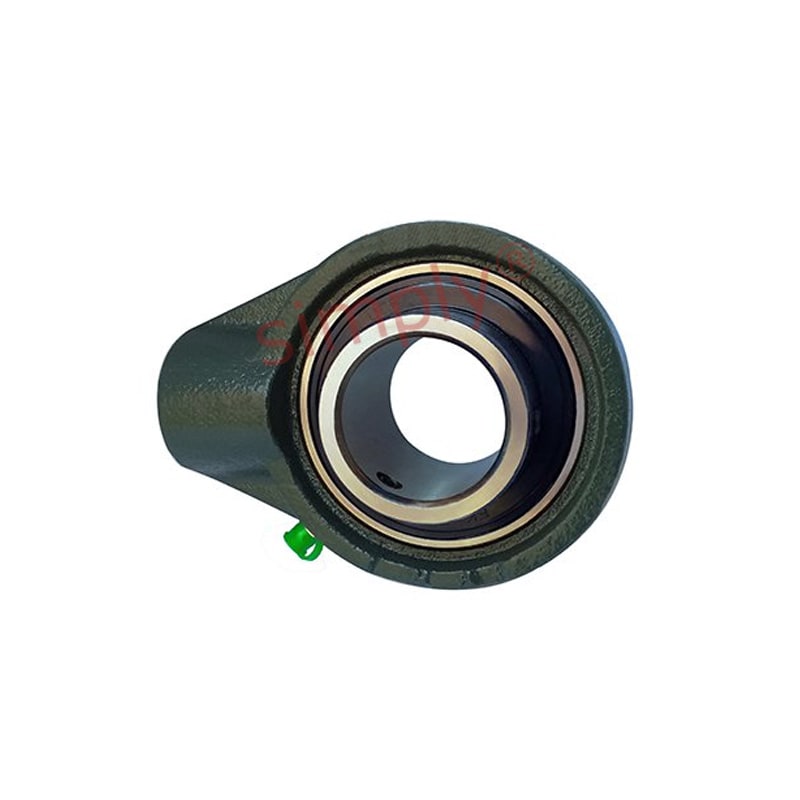

UCHA210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert
- Regular price
- €47.14 ex VAT
- Sale price
- €47,14
- Regular price
-
In stock
Quantity Price Breaks
3
€41.95
4
€39.60
9
€39.13
19
€38.65
49
€38.18
99
€37.71
499
€35.36
999
€34.88
1999
€34.41
2999
€33.94
4999
€33.00
SKU:
UCHA210
UCHA210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert
- Regular price
- €47.14 ex VAT
- Sale price
- €47,14
- Regular price
-
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 50mm |
| h | = | 83mm |
| w | = | 142mm |
| b | = | 118mm |
| c | = | 5mm |
| a | = | 48mm |
| s | = | G1 |
| l | = | 21mm |
| B | = | 51.6mm |
| n | = | 19mm |
| Bearing no | = | UC210 |
| Housing no | = | HA210 |
| Weight | = | 2.04 kg |
