SKU: UCHB202D1-NTN

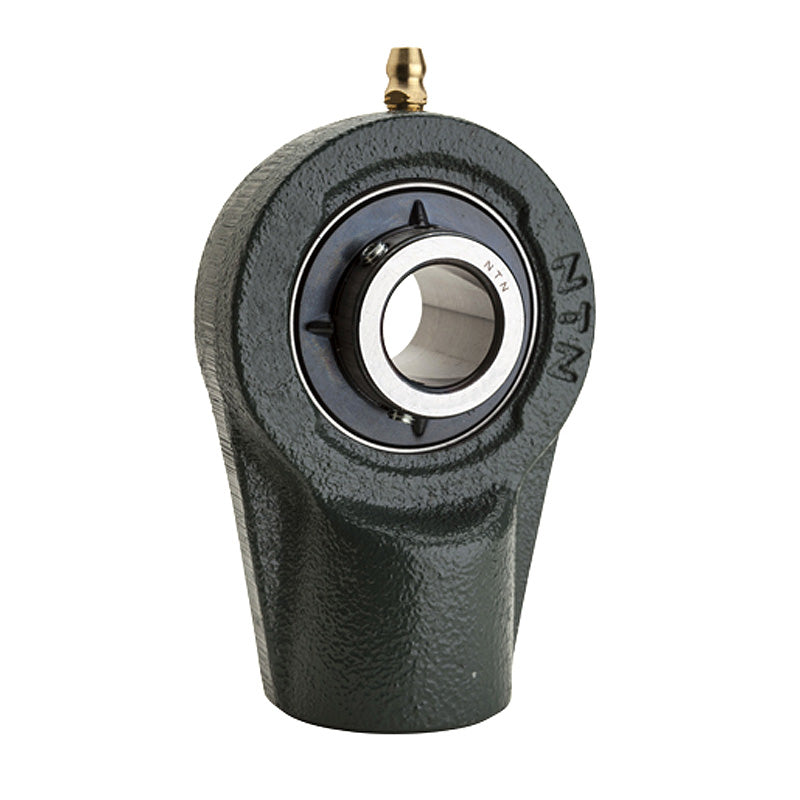

NTN UCHB202D1 Metric Cast Iron Hanger Bearing Unit with 15mm Bore Insert - Allow 2-3 Days
NTN UCHB202D1 Metric Cast Iron Hanger Bearing Unit with 15mm Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 15mm |
|---|---|
| L | 64mm |
| H<sub>1</sub> | 96mm |
| c | 0mm |
| A | 21mm |
| H | 64mm |
| N | RP3/4 |
| D | 40mm |
| j | 19mm |
| B | 31mm |
| S | 12.7mm |
| Mass | 0.9 kg |
