SKU: UCHB206D1-NTN

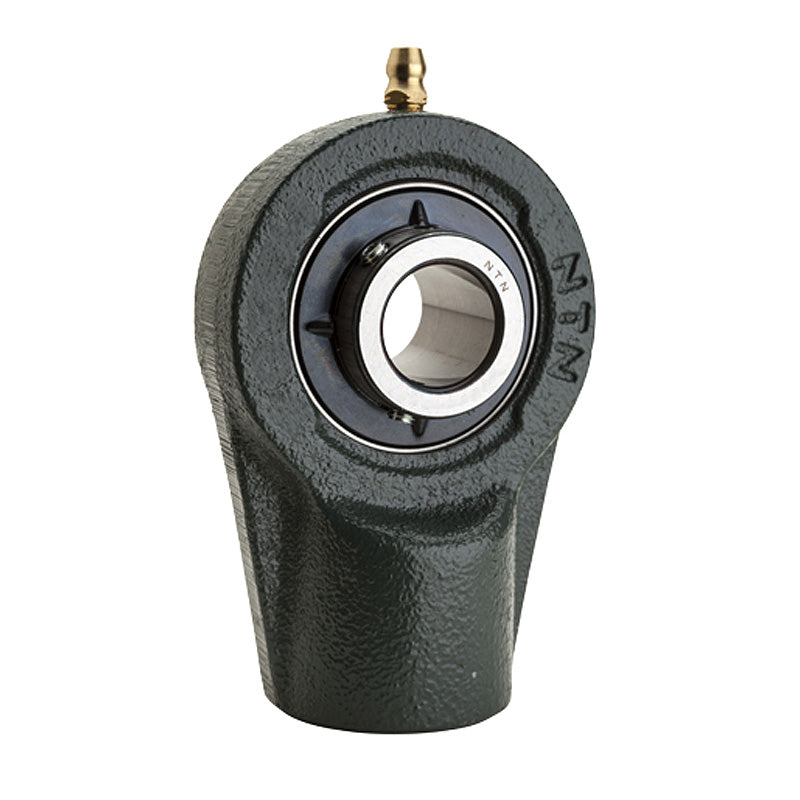

NTN UCHB206D1 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Not in stock
Quantity Price Breaks
3
€36.86
4
€34.79
9
€34.38
19
€33.96
49
€33.55
99
€33.14
499
€31.07
999
€30.65
1999
€30.24
2999
€29.82
4999
€28.99
SKU:
UCHB206D1-NTN
NTN UCHB206D1 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| Shaft diameter | = | 30mm |
| L | = | 78mm |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 103mm | |
| c | = | 0mm |
| A | = | 28mm |
| H | = | 64mm |
| N | = | RP3/4 |
| D | = | 40mm |
| j | = | 19mm |
| B | = | 38.1mm |
| S | = | 15.9mm |
| Mass | = | 0.8 kg |
