SKU: UCP.306

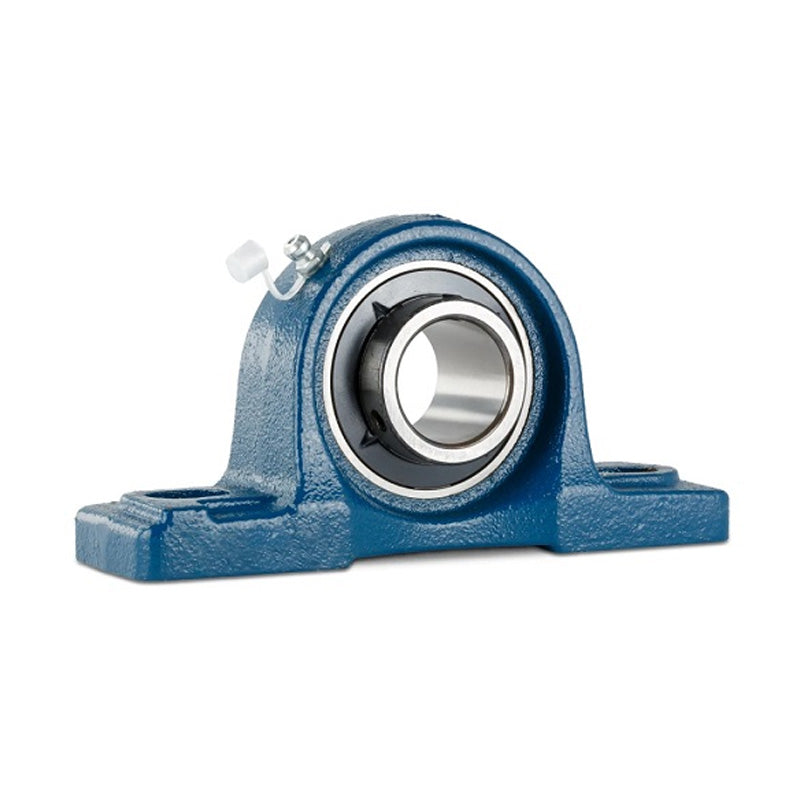

UCP306 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 30mm Bore Insert
- Regular price
- €31.06 ex VAT
- Sale price
- €31,06
- Regular price
-
In stock
Quantity Price Breaks
3
€27.64
4
€26.09
9
€25.78
19
€25.47
49
€25.16
99
€24.85
499
€23.30
999
€22.98
1999
€22.67
2999
€22.36
4999
€21.74
SKU:
UCP.306
UCP306 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 30mm Bore Insert
- Regular price
- €31.06 ex VAT
- Sale price
- €31,06
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

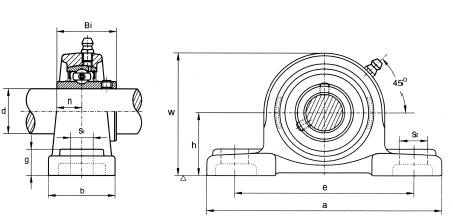

Technical
| d | = | 30mm |
| h | = | 50mm |
| a | = | 180mm |
| e | = | 140mm |
| b | = | 50mm |
| s2 | = | 20mm |
| s1 | = | 17mm |
| g | = | 18mm |
| w | = | 95mm |
| b1 | = | 43mm |
| n | = | 17mm |
| Bolt | = | 14mm |
| Weight | = | 2.1 kg |
| Dynamic load | = | 2119 kgf |
| Static load | = | 1445 kgf |
