SKU: UCP.310

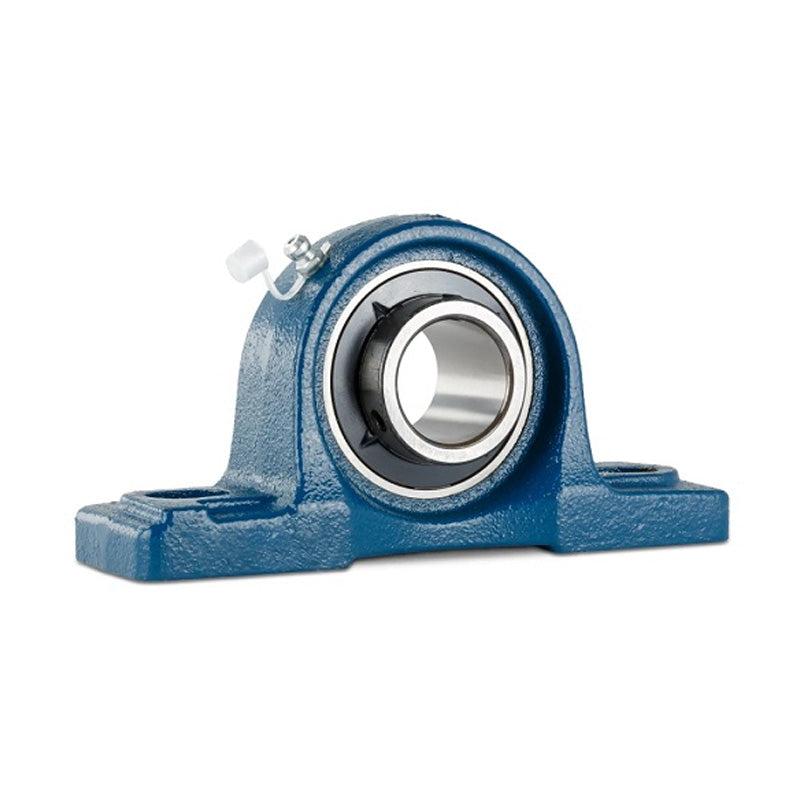

UCP310 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 50mm Bore Insert
- Regular price
- €66.95 ex VAT
- Sale price
- €66,95
- Regular price
-
In stock
Quantity Price Breaks
3
€59.59
4
€56.24
9
€55.57
19
€54.90
49
€54.23
99
€53.56
499
€50.21
999
€49.54
1999
€48.87
2999
€48.20
4999
€46.87
SKU:
UCP.310
UCP310 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 50mm Bore Insert
- Regular price
- €66.95 ex VAT
- Sale price
- €66,95
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

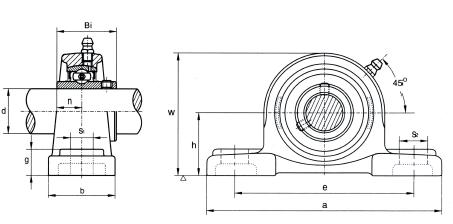

Technical
| d | = | 50mm |
| h | = | 75mm |
| a | = | 275mm |
| e | = | 212mm |
| b | = | 75mm |
| s2 | = | 35mm |
| s1 | = | 20mm |
| g | = | 27mm |
| w | = | 143mm |
| b1 | = | 61mm |
| n | = | 22mm |
| Bolt | = | 16mm |
| Weight | = | 6.4 kg |
| Dynamic load | = | 4850 kgf |
| Static load | = | 3640 kgf |
