SKU: UCP.311

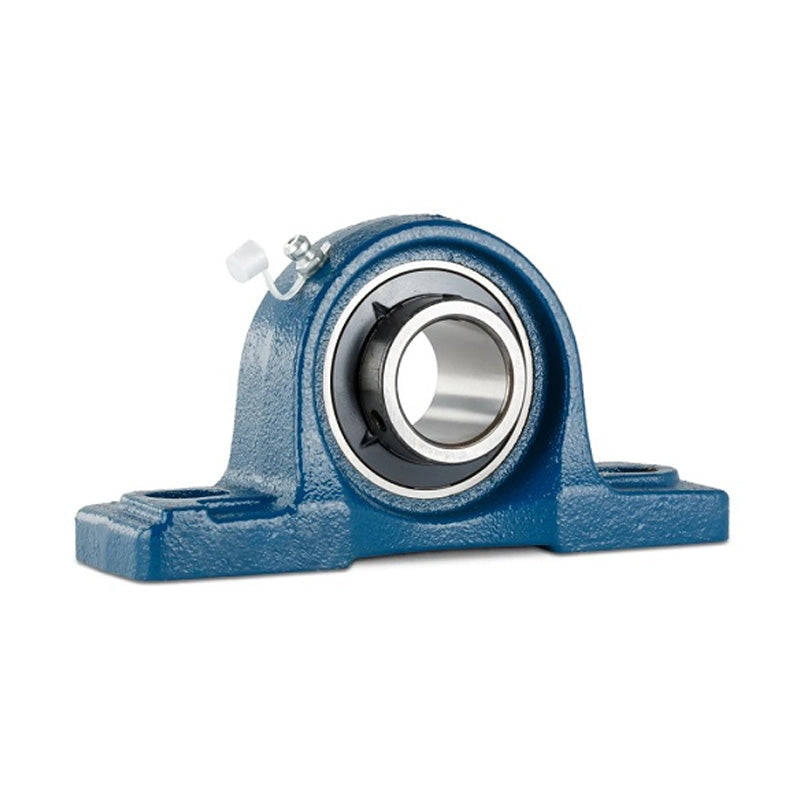

UCP311 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 55mm Bore Insert
- Regular price
- €87.23 ex VAT
- Sale price
- €87,23
- Regular price
-
Not in stock
Quantity Price Breaks
3
€77.63
4
€73.27
9
€72.40
19
€71.53
49
€70.66
99
€69.78
499
€65.42
999
€64.55
1999
€63.68
2999
€62.81
4999
€61.06
SKU:
UCP.311
UCP311 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 55mm Bore Insert
- Regular price
- €87.23 ex VAT
- Sale price
- €87,23
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 55mm |
| h | = | 80mm |
| a | = | 310mm |
| e | = | 236mm |
| b | = | 80mm |
| s2 | = | 38mm |
| s1 | = | 20mm |
| g | = | 30mm |
| w | = | 154mm |
| b1 | = | 66mm |
| n | = | 25mm |
| Bolt | = | 16mm |
| Weight | = | 7.8 kg |
| Dynamic load | = | 5620 kgf |
| Static load | = | 5280 kgf |
