SKU: UCP206-104D1-NTN

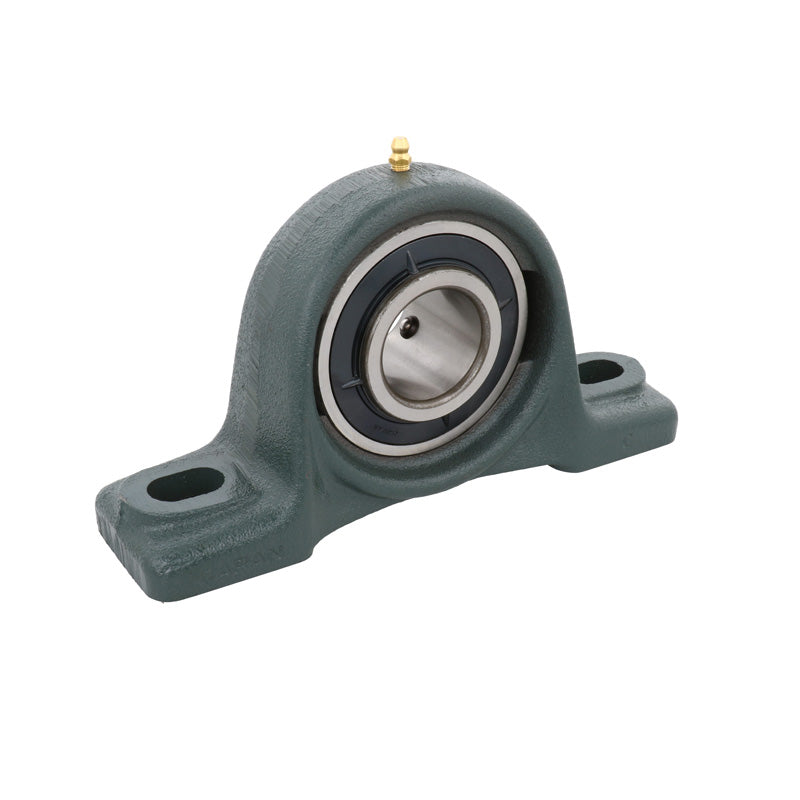

NTN UCP206-104D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert
NTN UCP206-104D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert
Regular price
€36,82
ex VAT
Regular price
Sale price
€36,82
ex VAT
In stock
Price Break
3+
€27,98
4+
€26,41
9+
€26,10
19+
€25,78
49+
€25,47
99+
€25,15
499+
€23,58
999+
€23,27
1999+
€22,95
2999+
€22,64
4999+
€22,01
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCP
- Bolt Hole Centres:
- 4-3/4 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/4 inch |
| H | 1-11/16 inch |
| L | 6-1/2 inch |
| J | 4-3/4 inch |
| A | 1-7/8 inch |
| N | 21/32 inch |
| N<sub>1</sub> | 25/32 inch |
| H<sub>1</sub> | 21/32 inch |
| H<sub>2</sub> | 3-9/32 inch |
| L<sub>1</sub> | 2-1/8 inch |
| B | 1.5 inch |
| S | 0.626 inch |
| Fixing bolt | 1/2 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 3.1 lbs |
