SKU: UCP206T20-SNR

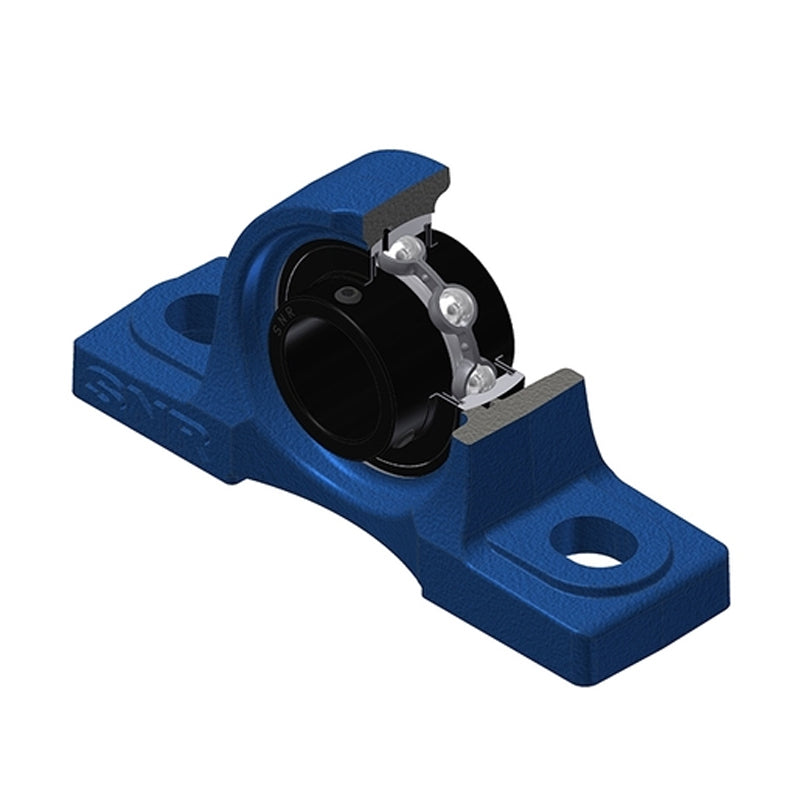

SNR UCP206T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert Wide Temperature Version
SNR UCP206T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert Wide Temperature Version
Regular price
€35,75
ex VAT
Regular price
Sale price
€35,75
ex VAT
In stock
Price Break
3+
€27,17
4+
€25,64
9+
€25,34
19+
€25,03
49+
€24,73
99+
€24,42
499+
€22,90
999+
€22,59
1999+
€22,29
2999+
€21,98
4999+
€21,37
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCP
- Bolt Hole Centres:
- 121mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 48mm |
| A1 | 30mm |
| B | 38.1mm |
| H | 42.9mm |
| H1 | 18mm |
| H2 | 83mm |
| J | 121mm |
| L | 165mm |
| L1 | 54mm |
| N | 17mm |
| N1 | 21mm |
| S | 15.9mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Mass | 1.36 kg |
| Recommended tightening torque for set screw | 5.5 Nm |
