SKU: UCP210D1-NTN

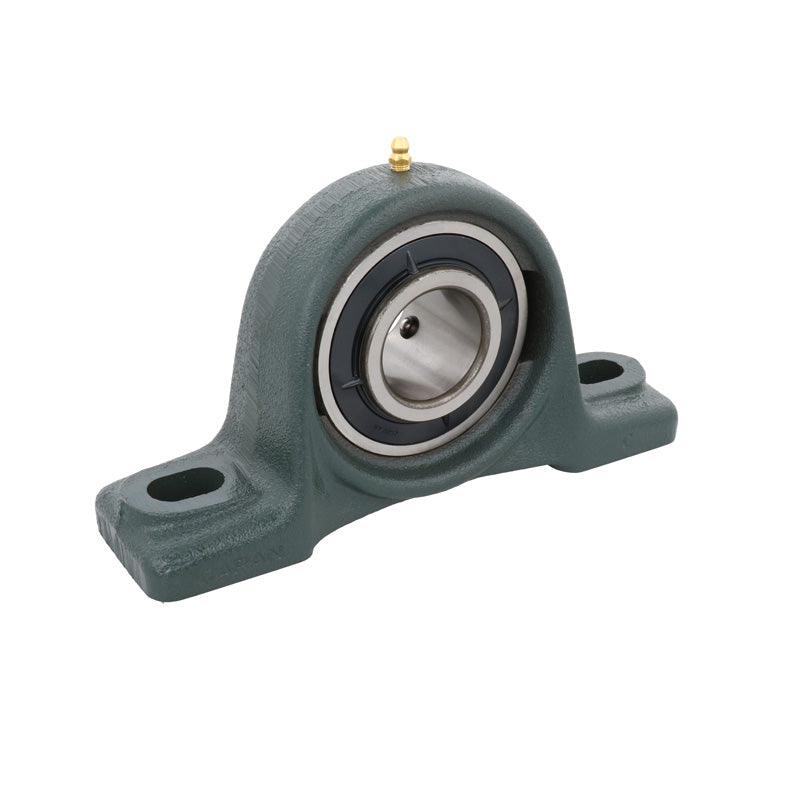

NTN UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
NTN UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
Regular price
€51,15
ex VAT
Regular price
Sale price
€51,15
ex VAT
In stock
Price Break
3+
€38,88
4+
€36,69
9+
€36,25
19+
€35,82
49+
€35,38
99+
€34,94
499+
€32,76
999+
€32,32
1999+
€31,89
2999+
€31,45
4999+
€30,58
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCP
- Bolt Hole Centres:
- 159mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| H | 57.2mm |
| L | 206mm |
| J | 159mm |
| A | 60mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 21mm |
| H<sub>2</sub> | 114mm |
| L<sub>1</sub> | 65mm |
| B | 51.6mm |
| S | 19mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 2.7 kg |
