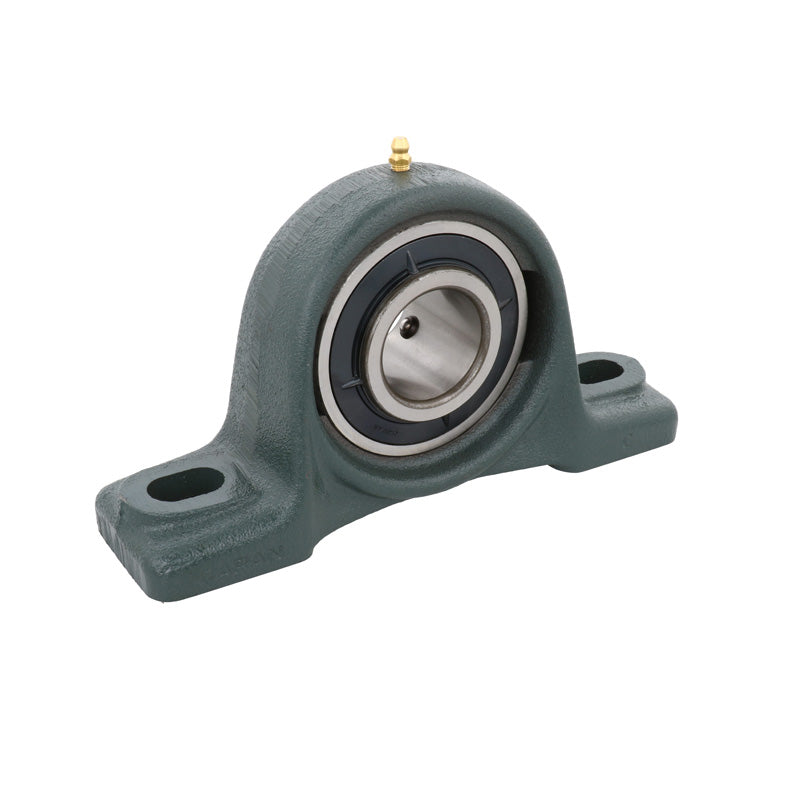

• NTN UCP212-207D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-7/16 inch Bore Insert - Allow 2-3 Days
  • NTN
1 2

SKU: UCP212-207D1-NTN

NTN UCP212-207D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-7/16 inch Bore Insert - Allow 2-3 Days

NTN UCP212-207D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-7/16 inch Bore Insert - Allow 2-3 Days
€110,46 ex VAT
€110,46 ex VAT
Sale Sold out

In stock

Price Break
3+ €83,94
4+ €79,23
9+ €78,29
19+ €77,34
49+ €76,40
99+ €75,46
499+ €70,74
999+ €69,80
1999+ €68,85
2999+ €67,91
4999+ €66,02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Style:
UCP
Bolt Hole Centres:
7-1/4 inch
Technical
--- Dimensions
Shaft diameter 2-7/16 inch
H 2-3/4 inch
L 9-1/2 inch
J 7-1/4 inch
A 2-3/4 inch
N 25/32 inch
N<sub>1</sub> 29/32 inch
H<sub>1</sub> 31/32 inch
H<sub>2</sub> 5-7/16 inch
L<sub>1</sub> 2-3/4 inch
B 2.563 inch
S 1 inch
Fixing bolt 5/8 inch
--- Load rating
Dynamic load C<sub>r</sub> 58 kN
Static load C<sub>0r</sub> 36 kN
Fatigue load limit C<sub>u</sub> 2.83 kN
--- Unit information
Mass 10 lbs
