SKU: UCP216D1-NTN

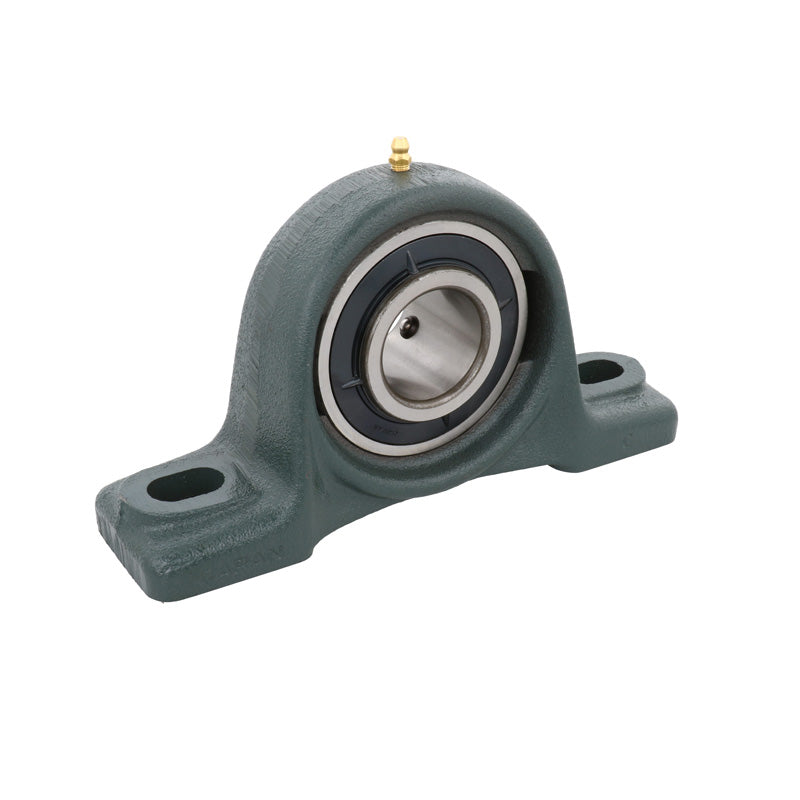

NTN UCP216D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
NTN UCP216D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
Regular price
€147,28
ex VAT
Regular price
Sale price
€147,28
ex VAT
In stock
Price Break
3+
€111,93
4+
€105,64
9+
€104,38
19+
€103,12
49+
€101,87
99+
€100,61
499+
€94,32
999+
€93,06
1999+
€91,80
2999+
€90,55
4999+
€88,03
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCP
- Bolt Hole Centres:
- 232mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| H | 88.9mm |
| L | 292mm |
| J | 232mm |
| A | 78mm |
| N | 25mm |
| N<sub>1</sub> | 28mm |
| H<sub>1</sub> | 30mm |
| H<sub>2</sub> | 175mm |
| L<sub>1</sub> | 85mm |
| B | 82.6mm |
| S | 33.3mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 8.7 kg |
