SKU: UCP218D1-NTN

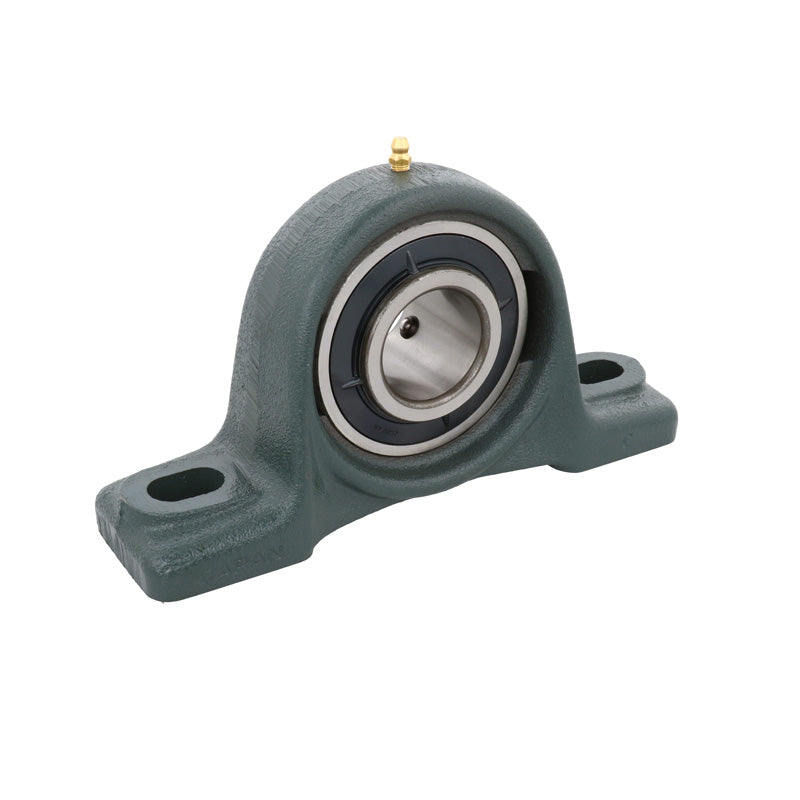

NTN UCP218D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
NTN UCP218D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
Regular price
€215,43
ex VAT
Regular price
Sale price
€215,43
ex VAT
In stock
Price Break
3+
€163,72
4+
€154,52
9+
€152,68
19+
€150,84
49+
€149,00
99+
€147,16
499+
€137,96
999+
€136,12
1999+
€134,28
2999+
€132,44
4999+
€128,77
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCP
- Bolt Hole Centres:
- 262mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| H | 101.6mm |
| L | 327mm |
| J | 262mm |
| A | 88mm |
| N | 27mm |
| N<sub>1</sub> | 30mm |
| H<sub>1</sub> | 33mm |
| H<sub>2</sub> | 200mm |
| L<sub>1</sub> | 90mm |
| B | 96mm |
| S | 39.7mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 106 kN |
| Static load C<sub>0r</sub> | 71.5 kN |
| Fatigue load limit C<sub>u</sub> | 5 kN |
| --- | Unit information |
| Mass | 13 kg |
