SKU: UCPA.210

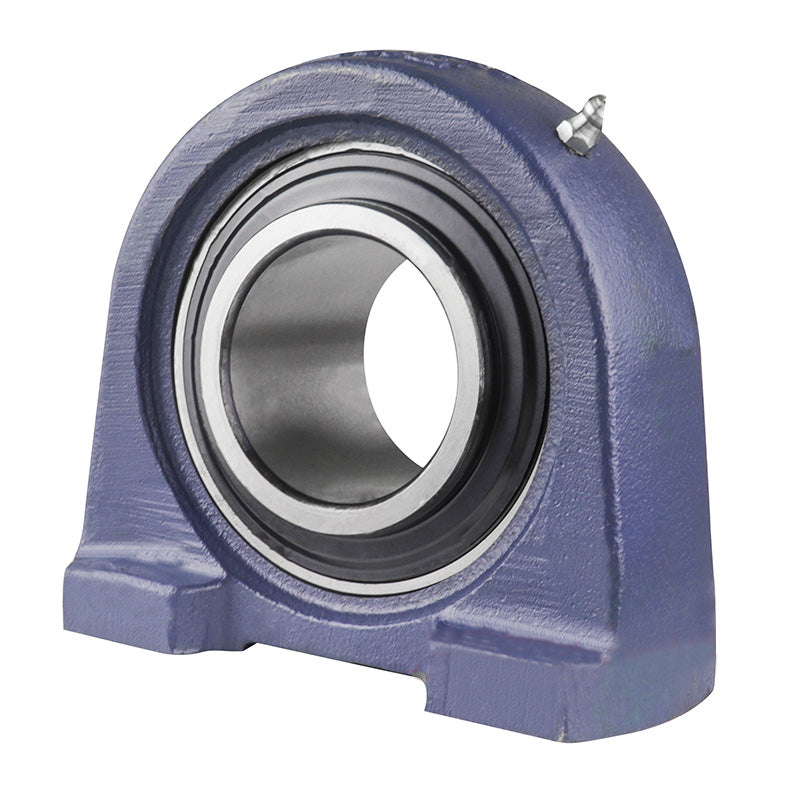

UCPA210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert

Name: UCPA210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert
Brand: Gen
SKU: UCPA.210
Price: 39.65 EUR
Availability: InStock

€39,65 ex VAT

Sale Sold out

Equivalent to: SNP50

In stock

Price Break

3+ €30,18

4+ €28,49

9+ €28,15

19+ €27,81

49+ €27,47

99+ €27,13

499+ €25,44

999+ €25,10

1999+ €24,76

2999+ €24,42

4999+ €23,74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 50mm
Style:: UCPA
Bolt Hole Centres:: 94mm

Technical

d	50mm
h	57.2mm
a	130mm
e	94mm
b	64mm
s	M16
g	14mm
w	116mm
D	25mm
Bi	51.6mm
n	19mm
Bolt Size	M16
Weight	2.8 kg
Dynamic load	2750 kgf
Static load	2020 kgf
Rec max speed	3400 rpm
